Molding of thermoplastic carbon fiber reinforced plastic and manufacturing of metal mold

Technical WEB page Company/Organization WEB page Print

Asano Co., Ltd.

Molding of thermoplastic carbon fiber reinforced plastic and manufacturing of metal mold

Technical Classification:: [ Molding ]
Products:: [ Equipment / Facilities ]
Keyword:: [ CFRTP ] [ heat & cool molding ] [ hybrid molding ] [ injection molding ] [ metal mold ] [ press forming ]

Point of the Proposed Technology

(i) High-cycle molding of CFRTP continuous fiber cloth
(ii) Hybrid molding realized by combining press molding technology with injection molding technology, and manufacturing of mold
(iii) Heat & cool high-cycle molding by electromagnetic induction heating, and manufacturing of heat & cool mold
(iv) Integral molding of hybrid board composed of metal and CFRTP

Effect(s)

(i) Molding cycle of one minute or less
(ii) Finished product only by 1 shot
(iii) High-quality product with good design
(iv) Partial strength and flexibility in assembly

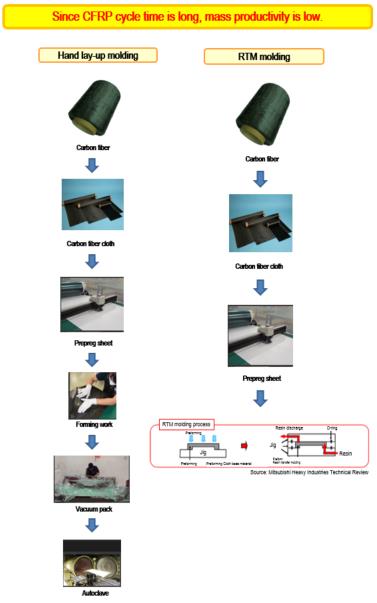

Conventional Technology

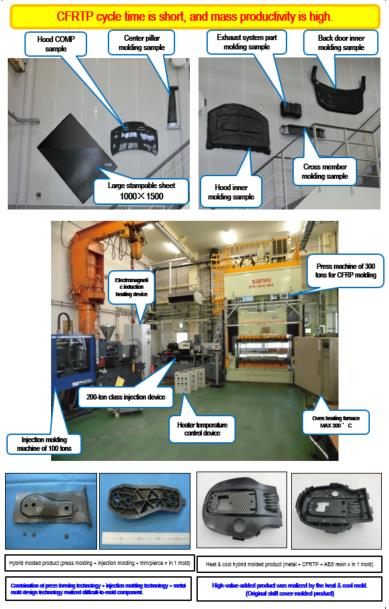

New Technology

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	Yes
Joint Researchers (their role)	Not published (Please inquire us.)
Example of Application	・Automobile body parts, interior parts ・Aircraft interior parts
Technical Problems	＜Constraint＞ Since thermoplastic resin is used as base material, there are some restraints in use at high temperature. ＜Business plan＞ Providing our findings, we will shorten the development lead time and promote commercialization through joint research and joint development with customers.
Collaborator needed to Improve	Research organizations, universities and companies which are able to conduct various evaluations of products
Technical WEB page	http://www.asano-japan.com/html/p_newproduct/newproduct_02.html

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: Yes
Joint Researchers (their role): Not published (Please inquire us.)
Example of Application: ・Automobile body parts, interior parts
・Aircraft interior parts
Technical Problems: ＜Constraint＞ Since thermoplastic resin is used as base material, there are some restraints in use at high temperature.
＜Business plan＞ Providing our findings, we will shorten the development lead time and promote commercialization through joint research and joint development with customers.
Collaborator needed to Improve: Research organizations, universities and companies which are able to conduct various evaluations of products
Technical WEB page: http://www.asano-japan.com/html/p_newproduct/newproduct_02.html

Inquiries

Personnel / Department	R&D department / Hitoshi Nakamura
Address	372-0011 2718－1, Sanwa-cho, Isesaki-shi, Gunma-ken, 372-0011, Japan
Contact	TEL:+81-270-75-1700 FAX:+81-270-75-1600 Inquiry Form

Personnel / Department: R&D department / Hitoshi Nakamura
Address: 372-0011 2718－1, Sanwa-cho, Isesaki-shi, Gunma-ken, 372-0011, Japan
Contact: TEL:+81-270-75-1700
FAX:+81-270-75-1600
Inquiry Form

Outline of Company and Organization

Location	2718－1, Sanwa-cho, Isesaki-shi, Gunma-ken, 372-0011, Japan
Contact	TEL:+81-270-75-1700 FAX:+81-270-75-1600
Capital / No. of Employees	90,000,000 yen / 342 employees
Product Line	Prototypes of automobile parts, press mold, resin mold
Major Customers	Automobile-related makers
Overseas Base(s)	None
Certification	ISO 9100　：　ISO 14000
Company/Organization WEB page	http://www.asano-japan.com/

Location: 2718－1, Sanwa-cho, Isesaki-shi, Gunma-ken, 372-0011, Japan
Contact: TEL:+81-270-75-1700
FAX:+81-270-75-1600
Capital / No. of Employees: 90,000,000 yen / 342 employees　
Product Line: Prototypes of automobile parts, press mold, resin mold
Major Customers: Automobile-related makers
Overseas Base(s): None
Certification: ISO 9100　：　ISO 14000
Company/Organization WEB page: http://www.asano-japan.com/
