Resin welding by ultrasonic (resin impregnation for UD tape/continuous welding of CFRTP parts/UD tape lay-up)
- Technical Classification:
- [ Intermediate Products ] [ Joining ]
- Products:
- [ Equipment / Facilities ]
- Keyword:
- [ CFRTP ] [ continuous welding ] [ fully impregnated ] [ UD tape ] [ UD tape lay-up ]
Point of the Proposed Technology

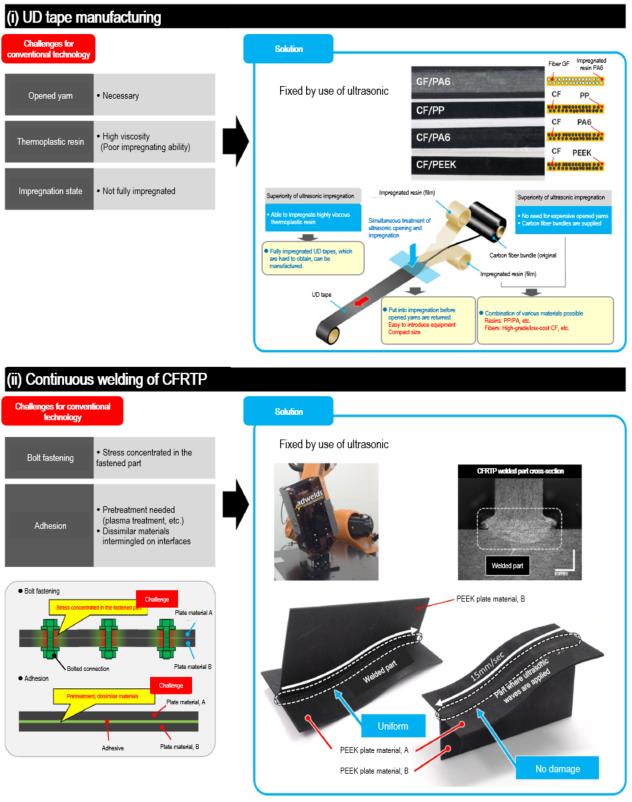

●UD tape manufacturing equipment：Fully impregnated UD tapes can be formed by supplying the unopened fibers and tape-like thermoplastic resin to the equipment.
●Continuous welding equipment for CFRTP parts：Strong welding of CFRTP is realized, regardless of directionality, by compact equipment mountable on a multiaxial robot.

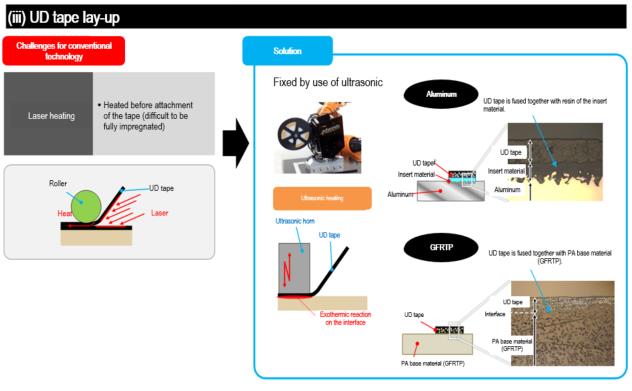

●UD tape lay-up：Compact size with robot attachment compatibility, equipped with pressurization control function to realize stable welding.
●Continuous welding equipment for CFRTP parts：Strong welding of CFRTP is realized, regardless of directionality, by compact equipment mountable on a multiaxial robot.
●UD tape lay-up：Compact size with robot attachment compatibility, equipped with pressurization control function to realize stable welding.
Effect(s)
●UD tape manufacturing equipment：Fully impregnated UD tapes can be manufactured in combination of various materials (fibers and matrix resin).
●Continuous welding equipment for CFRTP parts：Continuous welding is obtained without damage on the surface where ultrasonic are applied, and thus high-intensity welding is realized. Welding of the PEEK material is also possible.
●UD tape lay-up：Strong welding is realized where the resin on the lay-up interface is completely fused. Tape lay-up on aluminum is also possible.
●Continuous welding equipment for CFRTP parts：Continuous welding is obtained without damage on the surface where ultrasonic are applied, and thus high-intensity welding is realized. Welding of the PEEK material is also possible.
●UD tape lay-up：Strong welding is realized where the resin on the lay-up interface is completely fused. Tape lay-up on aluminum is also possible.
New Technology
Technology Deployment and Cooperation
- Development Stage
-
Commercialization Completed (already delivered: yes)
- Intellectual Property Right
- Yes
- Joint Researchers (their role)
- None
- Example of Application
- Weight reduction of automobiles, weight reduction of aircrafts, weight reduction of industrial machines
- Technical Problems
- [Business plan] Sales of the equipment to companies which develop weight reduction technologies using CFRTP
- Collaborator needed to Improve
- Aarospace manufacturers, automobile manufacturers, material manufacturers, industrial machine
manufacturers
