Development of High-Speed Large-Product Press Molding Technology (the LFT-D method) Using Thermoplastic CFRP
- Technical Classification:
- [ Molding ]
- Products:
- Keyword:
- [ high-cycle molding ] [ LFT-D ] [ low cost ] [ Thermoplastic CFRP ]
Point of the Proposed Technology
The structure using thermoplastic CFRP can be molded in one minute.
Stiffness and costs equivalent to those of the aluminum structure are realized by lighter structure than that of the aluminum.
It is possible to respond to mass production on the scale of 100,000 units per year.
Stiffness and costs equivalent to those of the aluminum structure are realized by lighter structure than that of the aluminum.
It is possible to respond to mass production on the scale of 100,000 units per year.
Effect(s)
Realization of light weight
New Technology

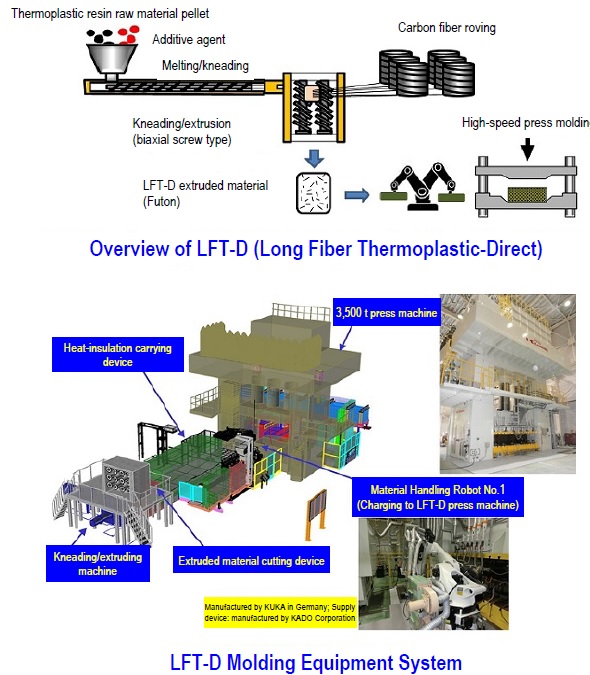

Continuous carbon fibers and thermoplastic resin pellets are kneaded by the biaxial extruding machine, and extruded materials are placed in the cutting,conveying, and material handling processes, and finally high-speed press molding is applied.
The LFT-D press molding can be made at a high speed and low cost, and offers adhesion capability.
The LFT-D press molding can be made at a high speed and low cost, and offers adhesion capability.

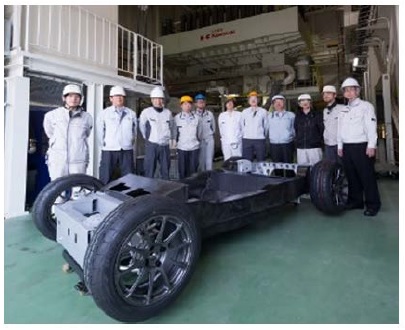

A study result of the chassis structure (succeeded in replacement of aluminum chassis of the Lotus Elise)
Video of the Proposed Technology
Technology Deployment and Cooperation
- Development Stage
-
Prototyping / experimental Stage
(to be completed in 2023/3; progress: 50%)
- Intellectual Property Right
- Applying
- Joint Researchers (their role)
- Toyota Motor Corporation, Honda R&D Co., Ltd., SUZUKI MOTOR CORPORATION, SUBARU CORPORATION, Toray Industries, Inc., Teijin Limited, Aisin Seiki Co., Ltd., Kyowa Industrial Co., Ltd.
- Example of Application
- Technical Problems
- Further improvement of mechanical properties
Further improvement of moldability
- Collaborator needed to Improve
