Support of trial manufacturing of prepreg using a small amount of newly developed resin (including manufacturing of specimen)
- Technical Classification:
- [ Raw Materials ]
- Products:
- [ Products / Processed Products ] [ Service ]
- Keyword:
- [ a small amount of resin ] [ ＣＦＲＰ ] [ CFRTP ] [ cloth ] [ Prepreg ] [ resin film ] [ trial manufacturing support ] [ UD ]
Point of the Proposed Technology
(i) 1. Manufacturing of continuous prepreg (UD/cloth) with leading-edge resin
2. UD prepreg with a small amount of developed resin and manufacturing of laminated molded plate for specimen
3. Both solvent type and solventless type are available. 4. Epoxy, BT resin, cyanate, bismaleimide, etc.

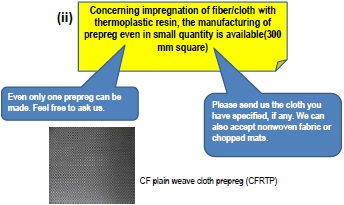

(ii) 1. Manufacturing of CFRTP prepreg (PA, PP, PC)
2. Manufacturing of laminated molded plate for specimen (300 mm square)
3. Support of trial manufacturing using a small amount of material

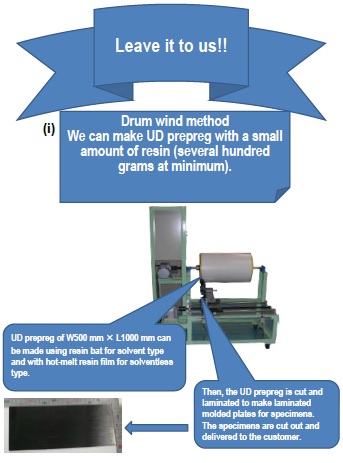

(iii) 1.Trial production (by a fiber rewinder) of continuous UD prepregs with various types of fibers (carbon, glass, aramid, etc.)
2. UD prepreg with a small amount of developed resin and manufacturing of laminated molded plate for specimen
3. Both solvent type and solventless type are available. 4. Epoxy, BT resin, cyanate, bismaleimide, etc.
(ii) 1. Manufacturing of CFRTP prepreg (PA, PP, PC)
2. Manufacturing of laminated molded plate for specimen (300 mm square)
3. Support of trial manufacturing using a small amount of material
(iii) 1.Trial production (by a fiber rewinder) of continuous UD prepregs with various types of fibers (carbon, glass, aramid, etc.)
Effect(s)
(i) Contributing to reduction of disposal or waste of material/substrate
(ii) Use for basic demonstration of prepreg which will be required in CFRTP injection molding or the like Collaborator needed
(ii) Use for basic demonstration of prepreg which will be required in CFRTP injection molding or the like Collaborator needed
Conventional Technology
New Technology
Technology Deployment and Cooperation
- Intellectual Property Right
- None
- Joint Researchers (their role)
- (ii) Provision of sample work to injection molding machine manufacturers
- Example of Application
- (i) We support not only the development of resin but the manufacture of prepreg using new fiber or substrate.
(ii) Verification of moldability for CFRTP prepregs with different thicknesses
(iii) Prepreg manufacturing with addition of CNT and CNF
- Technical Problems
- (i) Conclusion of NDA is required, in principle. If the molding behavior of resin is unknown when a new material is used, for example, we conduct due consultations with the customer before trial manufacturing.
(ii) For clients who need only resin films
- Collaborator needed to Improve
- ・Manufacturers and R&D organizations in various fields developing new raw materials and substances in overall FRP
・Businesses in the molding industry that are in search for new raw materials
- Technical WEB page
- http://www.w-i-t.co.jp/products/prepreg.html
Inquiries
- Personnel / Department
- / President, Kento Senda
- Address
- 808-6 Mukouyama, Naka-shi, Ibaraki, 311-0102 Japan
- Contact
-
TEL:+81-29-295-4248
FAX:+81-29-295-7576
Inquiry Form
Outline of Company and Organization
- Location
- 808-6 Mukouyama, Naka-shi, Ibaraki, 311-0102 Japan
- Contact
-
TEL:+81-29-295-4248
FAX:+81-29-295-7576
- Capital / No. of Employees
- 10,000,000 yen / 3 employees
- Product Line
- Various kinds of prepregs, CFRTP, FRP laminated plate, etc.
- Major Customers
- Manufacturers (chemical, automobile, etc.), laboratories
- Overseas Base(s)
- None
- Certification
- Company/Organization WEB page
- http://www.w-i-t.co.jp/
Update date: 2020/1/30
