A mold technology for high-cycle forming of thermoplastic CFRP

Technical WEB page Company/Organization WEB page Print

Hiroshima Prefectural Technology Research Institute

A mold technology for high-cycle forming of thermoplastic CFRP

Technical Classification:: [ Molding ]
Products:
Keyword:: [ compression molding ] [ Thermoplastic CFRP ]

Point of the Proposed Technology

・To obtain an automotive part using thermoplastic CFRP, the company is working to develop a heat press molding technology that enables cost reduction at a higher cycle than the conventional thermosetting CFRP autoclave molding. In this effort, the company has developed a technology for accelerating the die heating/cooling cycle without unevenness in temperature during molding.

Effect(s)

・Higher molding cycle
・Improvement of the molding quality

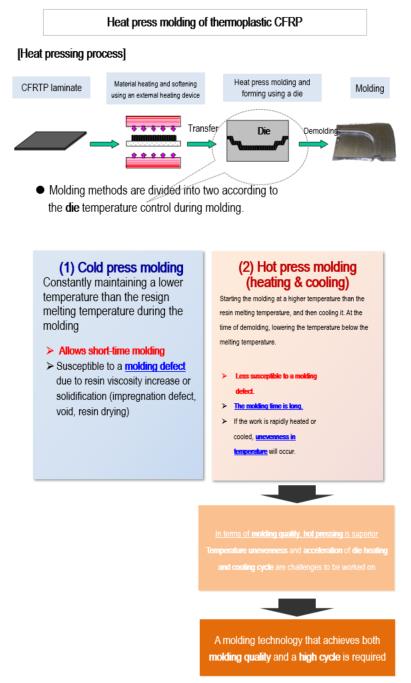

Conventional Technology

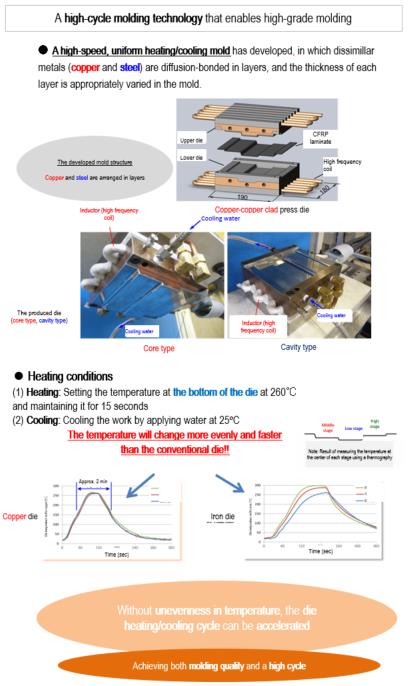

New Technology

Technology Deployment and Cooperation

Development Stage	Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right	Yes
Joint Researchers (their role)	Collaborating company Sekisou Kanagata Co., Ltd.: a high-cycle die (technology for bonding different-type materials)
Example of Application	・Various automotive parts, various industrial machinery parts, molding dies, wind turbine blades, commodities, etc.
Technical Problems	・Based on technologies the company has accumulated, the company is currently working on its efforts in joint research aimed at collaborating with and providing technical support to companies having specific needs. ・Responding to die size increase, diversifying the technologies for bonding different materials
Collaborator needed to Improve	・Material developing manufacturers, die manufacturers, press molding manufacturers, part molding manufacturers, research institutes, etc.
Technical WEB page	http://www.pref.hiroshima.lg.jp/soshiki/27/tanso-pj.html

Development Stage: Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right: Yes
Joint Researchers (their role): Collaborating company
Sekisou Kanagata Co., Ltd.: a high-cycle die (technology for bonding different-type materials)
Example of Application: ・Various automotive parts, various industrial machinery parts, molding dies, wind turbine blades, commodities, etc.
Technical Problems: ・Based on technologies the company has accumulated, the company is currently working on its efforts in joint research aimed at collaborating with and providing technical support to companies having specific needs.
・Responding to die size increase, diversifying the technologies for bonding different materials
Collaborator needed to Improve: ・Material developing manufacturers, die manufacturers, press molding manufacturers, part molding manufacturers, research institutes, etc.
Technical WEB page: http://www.pref.hiroshima.lg.jp/soshiki/27/tanso-pj.html

Inquiries

Personnel / Department	Western Region Industrial Research Center　Technical Support Department / Naonori Matsunaga
Address	2-10-1, Agaminami, Kure, Hiroshima, 737-0004, Japan
Contact	TEL:+81-823-74-1160 FAX:+81-823-74-1131 Inquiry Form

Personnel / Department: Western Region Industrial Research Center　Technical Support Department / Naonori Matsunaga
Address: 2-10-1, Agaminami, Kure, Hiroshima, 737-0004, Japan
Contact: TEL:+81-823-74-1160
FAX:+81-823-74-1131
Inquiry Form
