Development of thermoplastic CFRP sandwich panel
- Technical Classification:
- [ Intermediate Products ]
- Products:
- Keyword:
- [ honeycomb core sandwich ] [ Thermoplastic CFRP ]
Point of the Proposed Technology

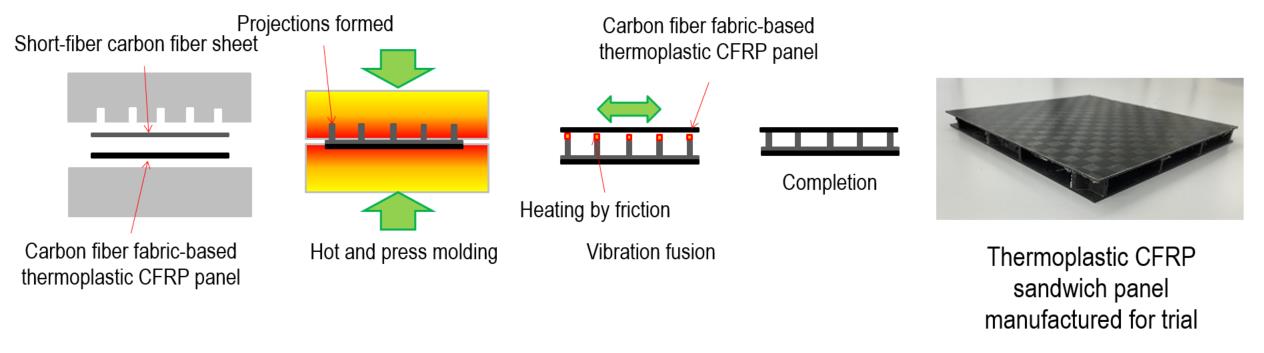

・Hybrid press molding technology for carbon fiber fabric-based thermoplastic CFRP and short fabric carbon fiber base material
・Technology for adhesion of thermoplastic CFRPs to each other using vibration fusion technology
・Technology for adhesion of thermoplastic CFRPs to each other using vibration fusion technology
Effect(s)

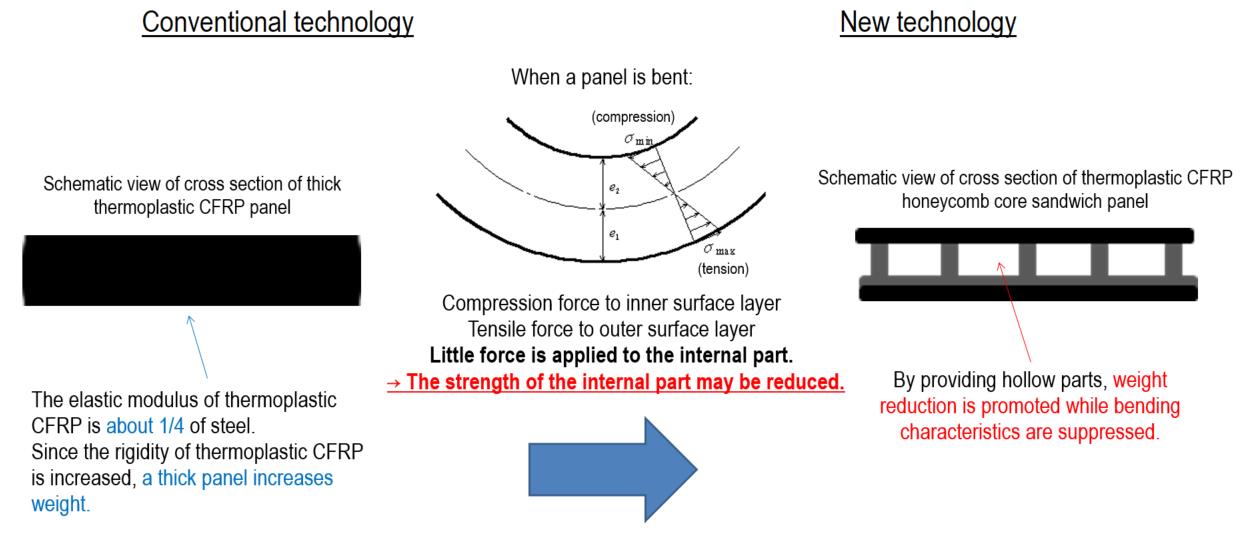

・Weight reduction of thick thermoplastic CFRP panel
New Technology
Technology Deployment and Cooperation
- Development Stage
-
Development Stage
(to be completed in 2017/3; progress: 100%)
- Intellectual Property Right
- Yes
- Joint Researchers (their role)
- Example of Application
- Panel materials requiring weight reduction
- Technical Problems
- Warpage of product made through hybrid press molding.
The size of a sandwich panel depends on the processing capacity of a vibration fusion device.
- Collaborator needed to Improve
- Material development makers, press molding industry,
Research and development organizations including universities conduct R&D of thermoplastic CFRP
