Extension of life of CFRP hole-processing drill by crystal diamond coating
- Technical Classification:
- [ Processing ]
- Products:
- [ Jig ]
- Keyword:
- [ CFRP hole-processing ] [ control of delamination ] [ extension of tool life ]
Point of the Proposed Technology
- In cutting of carbon composite fibers (CFRP) with high strength and high opponent attacking property, the tool life will be improved greatly compared to the conventional diamond coating by adoption of the crystal diamond coating with higher crystalline and improved wear resistance.
Effect(s)
Tool life (more than twice the conventional product)
Control of residual fibers and delamination
Control of residual fibers and delamination
Conventional Technology

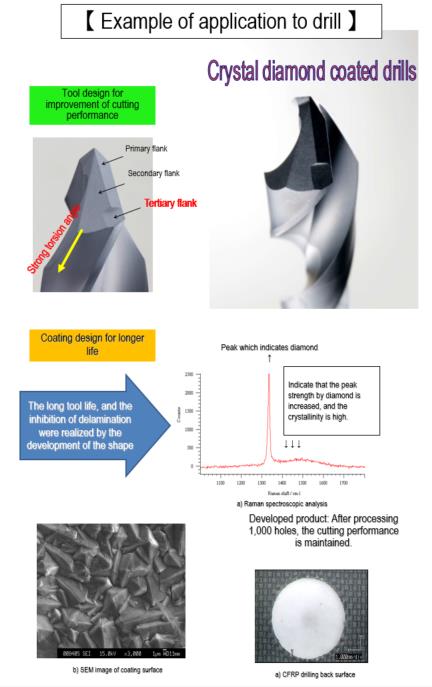

【Example of application to drill】
Problem of CFRP (carbon fiber reinforced plastics) processing
CFRP = Carbon Fiber Reinforced Plastics
New material of carbon fiber fabrics layered and hardened with resin

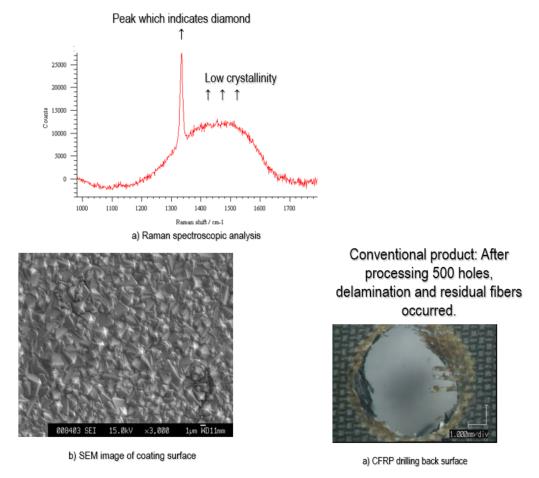

1) Wear progresses quickly.
- Hard carbon fiber: 6,000 to 8,000 HV
⇒ For the conventional diamond coating, wear progresses quickly and the life is short.
2) Delamination and residual fibers occur easily.
- If the tool does not cut well, laminated carbon fibers will not be cut, and delamination or residual fibers will occur, resulting in quality defect.
3) Weak against heat
- The heat resisting temperature of resin is about 200℃:
The processing heat cannot be increased.
⇒ A sharp cutting blade excellent in cutting performance with low resistance is necessary.
Problem of CFRP (carbon fiber reinforced plastics) processing
CFRP = Carbon Fiber Reinforced Plastics
New material of carbon fiber fabrics layered and hardened with resin
1) Wear progresses quickly.
- Hard carbon fiber: 6,000 to 8,000 HV
⇒ For the conventional diamond coating, wear progresses quickly and the life is short.
2) Delamination and residual fibers occur easily.
- If the tool does not cut well, laminated carbon fibers will not be cut, and delamination or residual fibers will occur, resulting in quality defect.
3) Weak against heat
- The heat resisting temperature of resin is about 200℃:
The processing heat cannot be increased.
⇒ A sharp cutting blade excellent in cutting performance with low resistance is necessary.
New Technology
Technology Deployment and Cooperation
- Development Stage
-
Commercialization Completed (already delivered: yes)
- Intellectual Property Right
- Yes
- Joint Researchers (their role)
- Nippon Institute of Technology (Coating film performance evaluation)
- Example of Application
- Airframe parts using CFRP of aircraft
- Technical Problems
- - Tool shape may be studied according to processing and required accuracy for each user.
- Once the film removal, regrinding, and recoating technologies for diamond coating tools are established, it will contribute further to the cost reduction of users.
- Collaborator needed to Improve
- Technical WEB page
- http://www.nachi-fujikoshi.co.jp/tool/drill/crystal-dia_a.htm
