High-quality and long-life processing of CFRP by crystal diamond coated fiber mill
- Technical Classification:
- [ Processing ]
- Products:
- [ Jig ]
- Keyword:
- [ CFRP processing ] [ increase of life of tool ] [ reduction of uncut remnant or tear ]
Point of the Proposed Technology
・In the cutting process of carbon fiber reinforced resin (CFRP) by which the tool wears out very quickly, adoption of crystal diamond coating having an enhanced crystalline and an increased wear resistance greatly increases the life of tool.
Effect(s)
Longer life of tool (over double the life of a general-purpose tool)
Reduction of uncut remnant or tear
Reduction of uncut remnant or tear
Conventional Technology

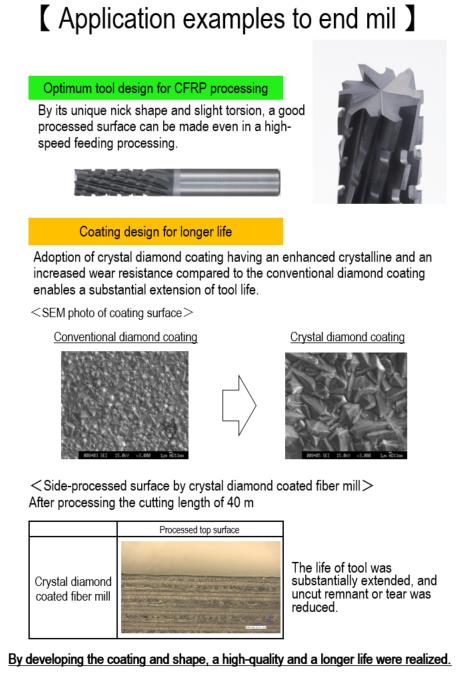

【Application examples to end mil】
Problems in processing of CFRP (carbon fiber reinforced plastics)
CFRP = Carbon Fiber Reinforced Plastics
New material made by laminating carbon fiber fabrics and hardening them with resin
1) Quick wear
・Hard carbon fiber: 6,000 to 8,000 HV
⇒ When a general carbide tool is used, it wears out quickly and becomes short-lived
2) Delamination or uncut remnant easily occurs.

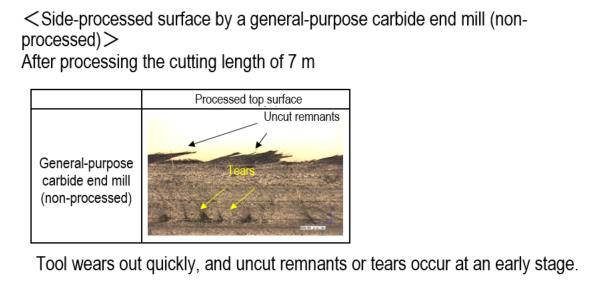

・When a dull cutting tool is used, laminated carbon fibers are not cut, and interlaminar delamination or uncut remnant occurs, resulting in defect in quality.
3) Low heat resistance
・Since the heat-resistant temperature of resin is about 200°C, the processing heat must be suppressed.
⇒Cutting edge having a low resistance and a good sharpness required.
Problems in processing of CFRP (carbon fiber reinforced plastics)
CFRP = Carbon Fiber Reinforced Plastics
New material made by laminating carbon fiber fabrics and hardening them with resin
1) Quick wear
・Hard carbon fiber: 6,000 to 8,000 HV
⇒ When a general carbide tool is used, it wears out quickly and becomes short-lived
2) Delamination or uncut remnant easily occurs.
・When a dull cutting tool is used, laminated carbon fibers are not cut, and interlaminar delamination or uncut remnant occurs, resulting in defect in quality.
3) Low heat resistance
・Since the heat-resistant temperature of resin is about 200°C, the processing heat must be suppressed.
⇒Cutting edge having a low resistance and a good sharpness required.
New Technology
Technology Deployment and Cooperation
- Development Stage
-
Commercialization Completed (already delivered: yes)
- Intellectual Property Right
- None
- Joint Researchers (their role)
- Nippon Institute of Technology (performance assessment for coating film)
- Example of Application
- Aircraft body parts using CFRP
- Technical Problems
- The shape of tool can be considered according to processing precision required by users.
- Collaborator needed to Improve
- Technical WEB page
- http://www.nachi-fujikoshi.co.jp/tool/drill/crystal-dia_a.htm
