THERMOTEQ, Inc. (Manufucturer) REIKEN, Inc. (Distributor)
System that performs rapid heating and rapid cooling by instantaneously switching the temperature of the medium circulating into the metal die between high and low temperature
- Technical Classification:
- [ Molding ]
- Products:
- [ Equipment / Facilities ]
- Keyword:
- [ cooling ] [ heating ] [ Metal die ] [ temperature control ]
Point of the Proposed Technology
・ Shortening of the molding cycle time by rapid heating and rapid cooling
・ Raising the metal die temperature during the filling to a level at which the transferability can be increased.
・ After the filling, cooling the die as rapidly as possible to achieve a high-quality molding.
・ Raising the metal die temperature during the filling to a level at which the transferability can be increased.
・ After the filling, cooling the die as rapidly as possible to achieve a high-quality molding.

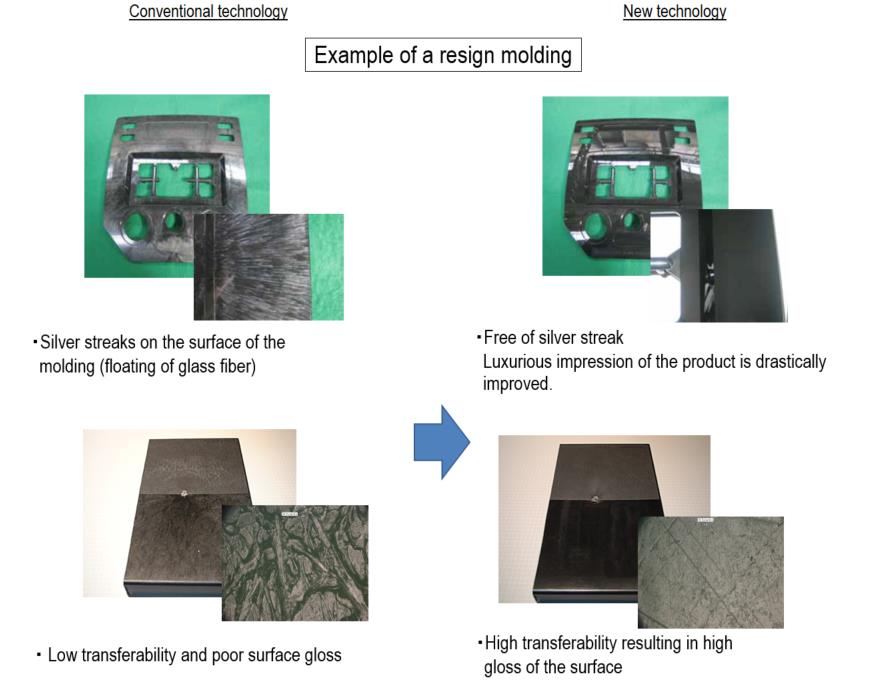

Effect(s)
Increased product strength
Increased transferability
Increased gloss
Increased transferability
Increased gloss
New Technology
Technology Deployment and Cooperation
- Development Stage
-
Commercialization Completed (already delivered: yes)
- Intellectual Property Right
- Yes
- Joint Researchers (their role)
- Not disclosed
- Example of Application
- ・Temperature control for a metal die for hot press molding
・Thick and thin plastic molding products
- Technical Problems
- ・Survey on the necessary functions and needs for metal die temperature control systems for carbon fiber composites
- Collaborator needed to Improve
- ・Companies that consider adopting temperature control (e.g., constant temperature, rapid heating, rapid cooling) for molding
- Technical WEB page
- http://www.thermoteq.co.jp/seihin.htm
Inquiries
- Personnel / Department
- Engineering Department / Nobuyuki Takabayashi
- Address
- 5-2-10 Minamitsumori, Nishinari-ku, Osaka, 557-0063 Japan
- Contact
-
TEL:+81-6-6659-1347
Inquiry Form
Outline of Company and Organization
- Location
- 5-2-10 Minamitsumori, Nishinari-ku, Osaka, 557-0063 Japan
- Contact
-
TEL:+81-6-6659-1147
FAX:+81-6-6659-1179
- Capital / No. of Employees
- 33,400,000 yen / 88 employees
- Product Line
- Temperature controllers for metal dies for plastic molding
- Major Customers
- Not disclosed
- Overseas Base(s)
- Has overseas bases
- Certification
- ISO 9001
- Company/Organization WEB page
- http://www.thermoteq.co.jp/
Update date: 2020/2/1
