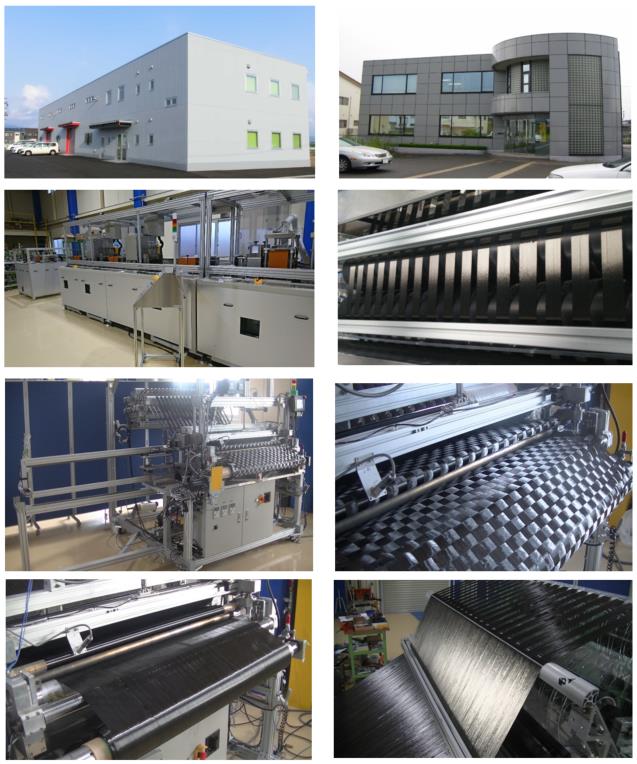

Intermediate Products Air-flow Single Tow or Multi Tow Spreading Machine. Spread Tow Weaving Machine.

Technical Classification:
[ Intermediate Products ]
Products:
[ Equipment / Facilities ]
Keyword:
[ Air-flow ] [ Fast Resin Impregnation ] [ Spread ] [ Spread-Tow fabric ] [ Spread-Tow UD sheet ]

Point of the Proposed Technology

Joint researcher(s) and their role

Effect(s)

Short-term impregnation of highly viscous thermoplastic resin is possible.

Conventional Technology

As a conventional general fiber spreading technology, it is a method of rubbing with a roll bar. But there is a limit on the fiber spreading magnification, actual spreading magnification is about 2 times maximum. Also rubbing makes some damage to the fiber.

New Technology

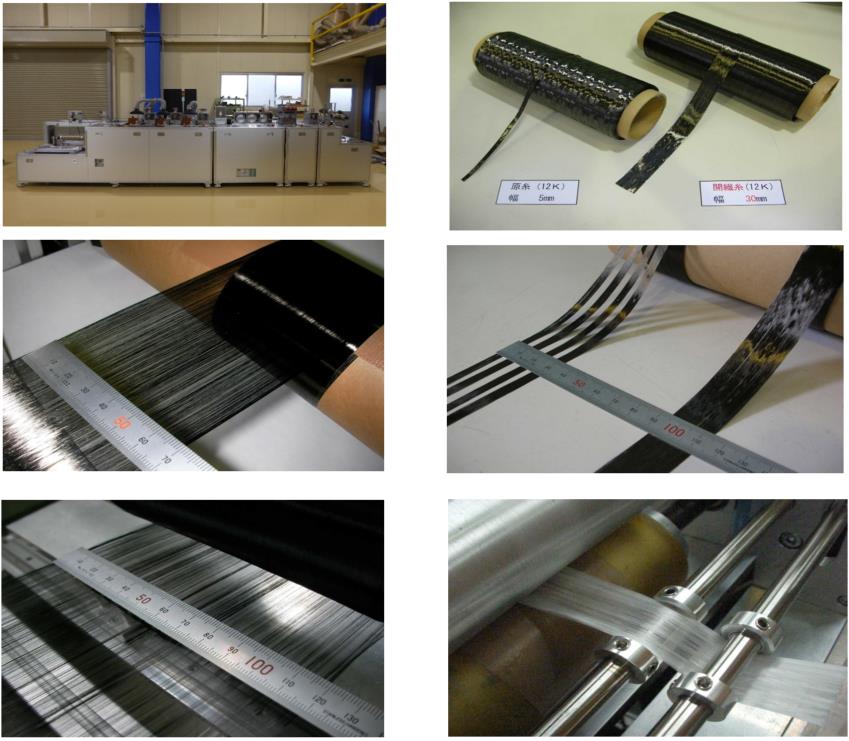

On the other hand, with the Air-flow spreading method developed by our company, it is possible to spread at least 2,3 times wider than the original yarn and 4,5 times or more is possible depending on the original yarn. Also Air-flow spreading is low damage to the yarn. Short-term impregnation of highly viscous thermoplastic resin is possible. Even in the case of spreading with a high magnification, our Air-flow spreading can adjust spreading speed and the number of spreading steps to improve the quality(uniformity of fibers) and to maintain stable spreading width continuously.

Technology Deployment and Cooperation

Development Stage
Commercialization Completed (already delivered: no)
Intellectual Property Right
Yes
Joint Researchers (their role)
Example of Application
Technical Problems
Collaborator needed to Improve
Technical WEB page

Inquiries

Personnel / Department
Fiber Spread Division / Director & General Mnager, Hiroaki Shinkado
Address
4-1501 Uenohonmachi, Fukui-City Fukui, 910-0134, Japan
Contact
TEL: +81-776-50-2250
FAX: +81-776-50-2231
Inquiry Form

Outline of Company and Organization

Location
2-2608 Takagichuo Fukui-City Fukui, 910-0804, Japan
Contact
TEL:+81-776-53-2324
FAX:+81-776-53-4477
Capital / No. of Employees
20,000,000 yen /
Product Line
Hydraulic and pneumatic equipment, mechatronics equipment, transportation equipment, Spread Tow Weaving Machine,etc.
