Point of the Proposed Technology

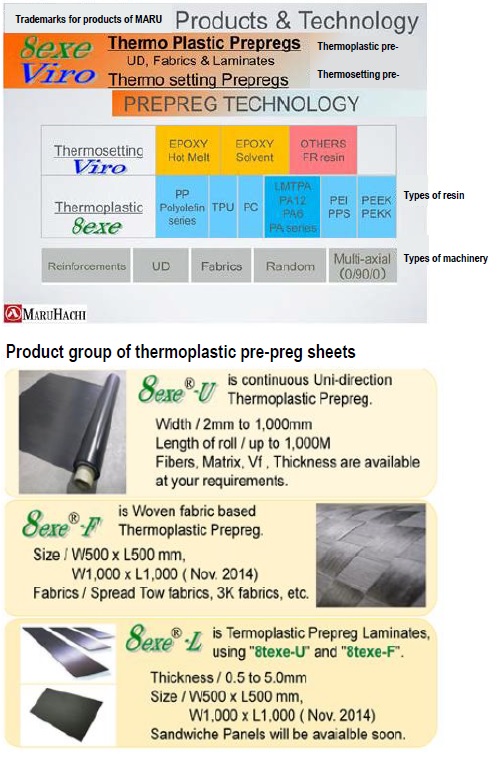

1) Thermoplastic pre-preg materials (8exe: Eightex)
(i) Broad (1-M width) UD (unidirectional) pre-preg sheets/slit tapes
(ii) Cross materials pre-preg

Effect(s)

・A wide variety of plastics materials can be used (PP. PA, PC, TPU, PPS, LCP, PEEK, PEKK, etc.).
・It is possible to put them into production in combination of existing technologies such as injection molding.
・It is possible to study an impact to future environment as materials with recyclability.
・It is possible to make additional processing such as partial reinforcement.

New Technology

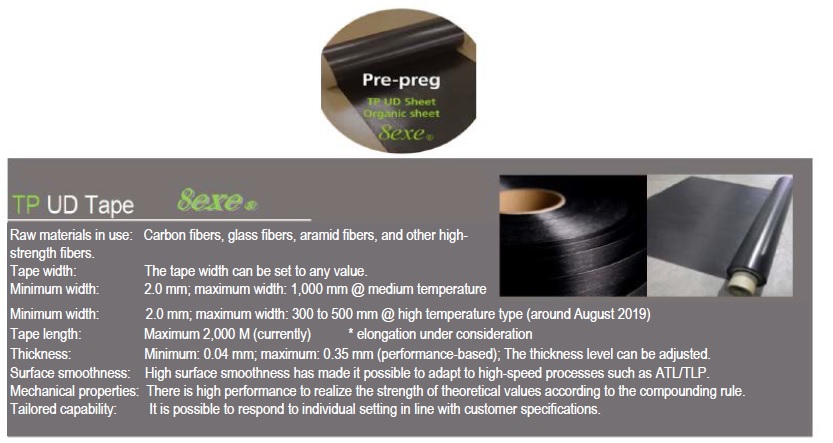

Raw materials in use: Carbon fibers, glass fibers, aramid fibers, and other high-strength fibers.
Tape width: The tape width can be set to any value.
Minimum width:    2.0 mm; maximum width: 1,000 mm @ medium temperature type
Minimum width:    2.0 mm; maximum width: 300 to 500 mm @ high temperature type (from December 2019)
Tape length:    Maximum 2,000 M (currently) Further i ncrease of length under consideration
Thickness:    Minimum: 0.04 mm; maximum: 0.35 mm (performance-based); Thickness level can be adjusted.
Surface smoothness: High surface smoothness has made it possible to adapt to high-speed processes such as ATL/TLP.
Mechanical properties: There is high performance to realize the strength of theoretical values according to the compounding rule.
Tailored capability: It is possible to respond to individual setting in line with customer specifications

Technology Deployment and Cooperation

Development Stage
Commercialization Completed (already delivered: yes)
Intellectual Property Right
Yes
Joint Researchers (their role)
Osaka University (role: analysis simulation for progress of damage to advanced composite materials)
Kyoto Institute of Technology (role: evaluation technology for advanced composite materials)
University of Tokyo (role: technology, analysis and evaluation related to composite materials)
Nihon University (role: technology, analysis and evaluation related to composite materials)
Doshisha University (role: technological support and evaluation related to composite materials)
ICC/Kanazawa Institute of Technology (role: support in commercialization and mass production)
Industrial Technology Center of Fukui Prefecture (role: opening technology)
Example of Application
・From automobile chassis to body and other members
・Aircraft members (under development), electronic device members (personal computer housings, portable terminal housings such as smartphones, and cases)
Technical Problems
Collaborator needed to Improve
Technical WEB page
http://www.maruhachi.eu

Inquiries

Personnel / Department
/ Ph. D / President & CEO, Toshi Sugahara
Address
12-1 Gennyo Maruoka, Sakai-shi, Fukui, 910-0276 Japan
Contact
TEL:+81-776-67-0808
Inquiry Form

Outline of Company and Organization

Location
12-1 Gennyo, Maruoka, Sakai-shi, Fukui, 910-0276 Japan
Contact
TEL:+81-776-67-0808
FAX:+81-776-67-8485
Capital / No. of Employees
80,000,000 yen / 22 employees
Product Line
Fiber reinforced composite material / Base material (cloth material / knit material) Prepreg material (UD material / cloth material: thermosetting type / thermoplastic type) Preform material (2D: laminated board material / tailored stack, 3D: 3D formed product ・ ATL (tape lay-up) laminated product / partially reinforced product) FW molded product (CFRP high pressure container, high pressure pipe, etc., commissioned evaluation test (high pressure burst test, cycle test, etc.)
Major Customers
Related companies in the field of sports goods, automobiles, aviation, machinery, energy and mass transport equipment, CFRP molding companies, trading companies and sales companies, etc.
