Spreading non-crimp fabric (Spreading NCF)

Technical WEB page Company/Organization WEB page Print

SHINDO Co., Ltd.

Technical Classification:: [ Intermediate Products ]
Products:: [ Products / Processed Products ]
Keyword:: [ Multiaxial ] [ Non-crimp fabric ] [ Ｐｒｅｆｏｒｍ ] [ spreading ] [ stitching ]

Point of the Proposed Technology

・Compared with fabrics, it is easier for the strength to develop (Non-crimp structure)
・Compared with fabrics, it is possible to reinforce in the diagonal direction.
・Compared with conventional non-crimp fabrics, thinner and more uniformed sheet can be manufactured.

Effect(s)

Strength development: high
Fiber content (Vf): high
GAP less、thin layer sheet

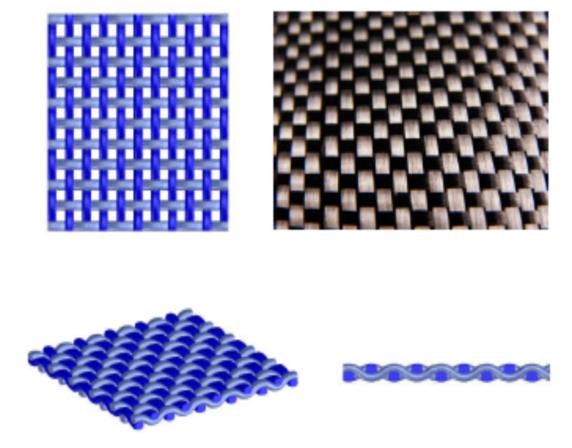

Conventional Technology

・Reinforced fiber is crimped.
・As reinforced fiber is crimped, it is hard for the strength to develop.　
・Due to the fabric structure, it can be reinforced only in the 0° and 90° directions.

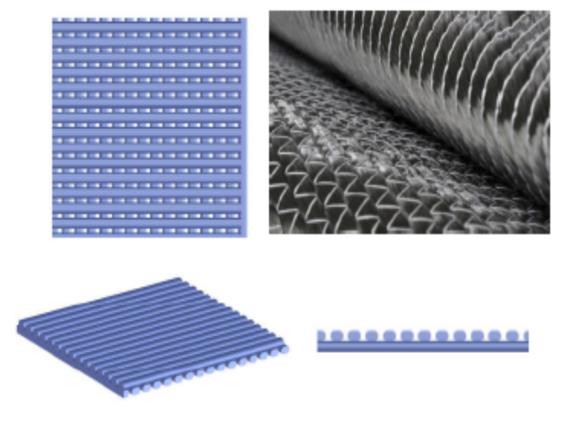

New Technology

・As each layer is independent, reinforced fiber is straight.　　
・As reinforced fiber is straight, it is easier for the strength to develop.
・As reinforced fiber is orientated in other than 0° and 90° directions and the fiber can be integrated by lamination by up to maximum four layers.
・Compared with conventional NCF, there is less GAP and the strength is easier to develop,because reinforced fiber is spreading.　

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	Applying
Joint Researchers (their role)
Example of Application	・CFRP parts in the aerospace field, a large scale ship structure, automobile parts, general industrial parts
Technical Problems	Provision of low cost high quality sheet using large tow carbon fiber （under development）
Collaborator needed to Improve	・Molder who are interested in CFRP where NCF is used and end users ・Machine manufacturers who can manufacture preform machines.
Technical WEB page	http://www.shindo.com/jp/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: Applying
Joint Researchers (their role)
Example of Application: ・CFRP parts in the aerospace field, a large scale ship structure, automobile parts, general industrial parts
Technical Problems: Provision of low cost high quality sheet using large tow carbon fiber （under development）
Collaborator needed to Improve: ・Molder who are interested in CFRP where NCF is used and end users
・Machine manufacturers who can manufacture preform machines.
Technical WEB page: http://www.shindo.com/jp/
