CF-SMC manufacturing machine ( name at our company: SMC impregnating machine)

Technical WEB page Company/Organization WEB page Print

Tokai Seiki Co., Ltd.

CF-SMC manufacturing machine ( name at our company: SMC impregnating machine)

Technical Classification:: [ Intermediate Products ]
Products:: [ Equipment / Facilities ]
Keyword:: [ carbon fiber SMC ] [ carbon fiber thermosetting SMC ] [ ＣF－ＳＭＣ ]

Point of the Proposed Technology

・Providing various CF-SMC sheet manufacturing machines for development or mass production　　
・Continuous operation at the time of change of film or cutting of sheet can be performed (with an accumulation device installed)

Effect(s)

Continuous production of CF-SMC
Development of sheet based on the mass-production machine production method

Conventional Technology

Trial production in small quantity by the SMC manufacturing machine for glass fiber.
Manual production in small quantity.

New Technology

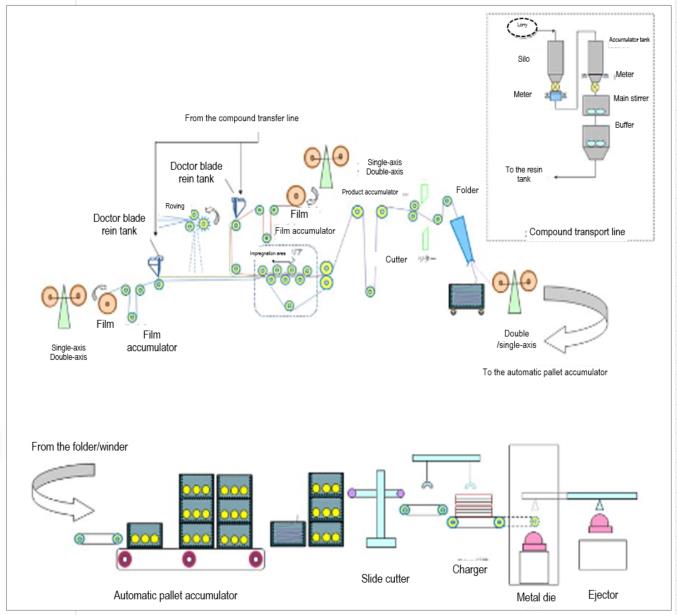

Glass fiber－SMC manufacturing machine has been modified to a CF-SMC manufacturing machine.
Improvements:
1) Roving cutter dedicated for carbon fibers
2) Metal piece detector
3) Sheet meandering control device
4) Container folding and storing device　

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	None
Joint Researchers (their role)	The company’s own technology
Example of Application	CF-SMC manufacturing machine for automobile parts
Technical Problems	Improvement of dispersibility of chopped CF Development of fiber tow spreading technology for SMC
Collaborator needed to Improve	Makers having the expertise in tow spreading technology
Technical WEB page	http://www.tokaiseiki.jp/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: None
Joint Researchers (their role): The company’s own technology
Example of Application: CF-SMC manufacturing machine for automobile parts
Technical Problems: Improvement of dispersibility of chopped CF
Development of fiber tow spreading technology for SMC
Collaborator needed to Improve: Makers having the expertise in tow spreading technology
Technical WEB page: http://www.tokaiseiki.jp/

Inquiries

Personnel / Department	Engineering unification department / Hidemitu Jituishi
Address	No. 542 Gokanjima, Fuji City, Shizuoka Prefecture, 416-0946, Japan
Contact	TEL:+81-545-61-7101 FAX:+81-545-64-0247 Inquiry Form

Personnel / Department: Engineering unification department / Hidemitu Jituishi
Address: No. 542 Gokanjima, Fuji City, Shizuoka Prefecture, 416-0946, Japan
Contact: TEL:+81-545-61-7101
FAX:+81-545-64-0247
Inquiry Form

Outline of Company and Organization

Location	No. 542 Gokanjima, Fuji City, Shizuoka Prefecture, 416-0946, Japan
Contact	TEL:+81-545-61-7101 FAX:+81-545-64-0247
Capital / No. of Employees	20,000,000 yen / 27 employees
Product Line	CF-SMC impregnating machines, cutting machines, accumulation machines, various test machines
Major Customers	SMC manufacturers/Automobile parts press makers
Overseas Base(s)
Certification	None
Company/Organization WEB page	http://www.tokaiseiki.jp/

Location: No. 542 Gokanjima, Fuji City, Shizuoka Prefecture, 416-0946, Japan
Contact: TEL:+81-545-61-7101
FAX:+81-545-64-0247
Capital / No. of Employees: 20,000,000 yen / 27 employees
Product Line: CF-SMC impregnating machines, cutting machines, accumulation machines, various test machines
Major Customers: SMC manufacturers/Automobile parts press makers
Overseas Base(s)
Certification: None
Company/Organization WEB page: http://www.tokaiseiki.jp/
