Heating and transfer device for thermoplastic CFRP which can be used with a general-purpose metal press machine

Technical WEB page Company/Organization WEB page Print

Kindai University ・ e-Composites Group

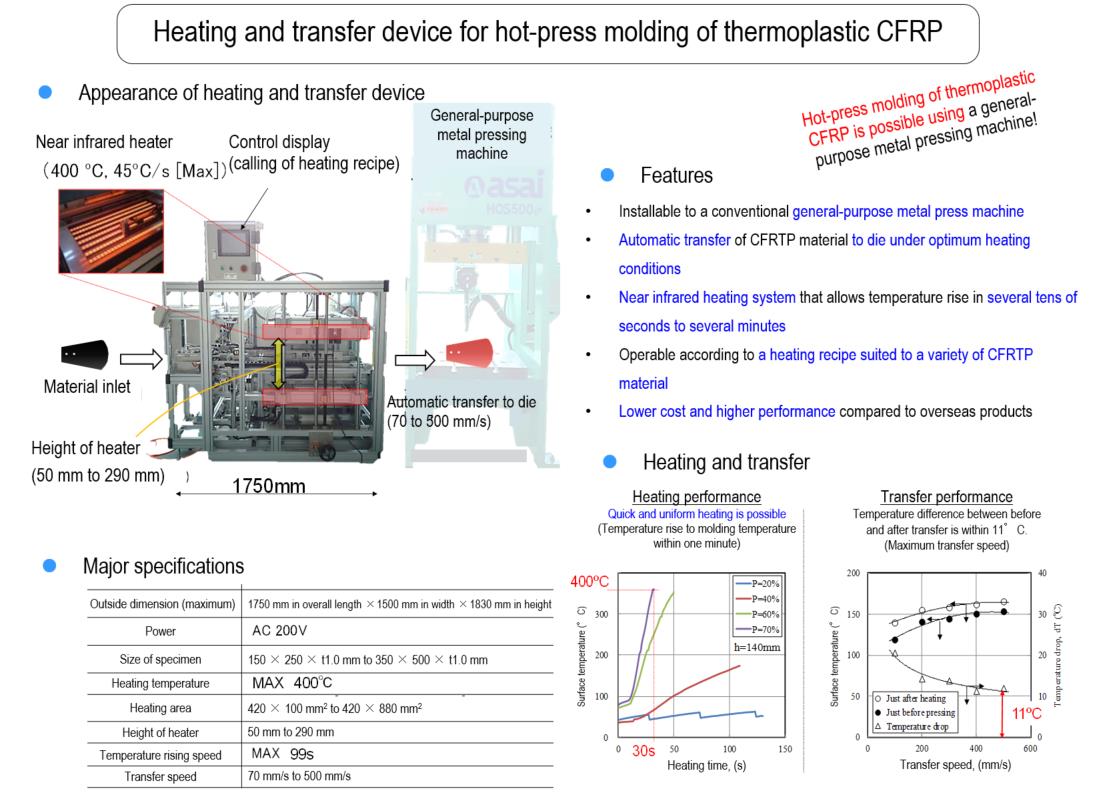

Heating and transfer device for thermoplastic CFRP which can be used with a general-purpose metal press machine

Technical Classification:: [ Molding ]
Products:
Keyword:: [ automatic transfer ] [ heating and transfer device ] [ Hot-press ] [ near infrared heating ]

Point of the Proposed Technology

・Heating and transfer device for hot-press molding of thermoplastic CFRP which can be installed to a general-purpose metal press machine
・Under the heating conditions suited to a variety of matrix resin, thermoplastic CFRP can be uniformly heated from both sides.
・It successfully realizes a substantial cost reduction compared to European heating and transfer devices.

Effect(s)

・Thermoplastic CFRP can be hot-press molded by a general-purpose metal press machine.
・Heating according to a desire heating recipe is possible

New Technology

Technology Deployment and Cooperation

Development Stage	Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right	None
Joint Researchers (their role)	HAMADA Press Kogei Ltd. (representative company) Katsulon Co., Ltd. HORAI Co., Ltd. Konishi Die Engineering Co., Ltd. Magic Box JP Corporation
Example of Application	・Realizing hot-press molding of thermoplastic CFRP using a general-purpose metal press machine ・Automatization of hot-press molding of thermoplastic CFRP
Technical Problems	・We are aiming at realizing a higher performance and a lower cost compared to European and American heating and transfer devices and promoting them nationwide ・Further cost reduction and enhancement of database of heating conditions in the future
Collaborator needed to Improve	・Material makers which can provide thermoplastic CFRP, etc.
Technical WEB page	https://researchmap.jp/kazuaki_nishiyabu

Development Stage: Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right: None
Joint Researchers (their role): HAMADA Press Kogei Ltd. (representative company)
Katsulon Co., Ltd.
HORAI Co., Ltd.
Konishi Die Engineering Co., Ltd.
Magic Box JP Corporation
Example of Application: ・Realizing hot-press molding of thermoplastic CFRP using a general-purpose metal press machine
・Automatization of hot-press molding of thermoplastic CFRP
Technical Problems: ・We are aiming at realizing a higher performance and a lower cost compared to European and American heating and transfer devices and promoting them nationwide
・Further cost reduction and enhancement of database of heating conditions in the future
Collaborator needed to Improve: ・Material makers which can provide thermoplastic CFRP, etc.
Technical WEB page: https://researchmap.jp/kazuaki_nishiyabu

Inquiries

Personnel / Department	Department of Mechanical Engineering, Faculty of Science and Engineering / Professor, Kazuaki Nishiyabu
Address	3-4-1 Kowakae, Higashiosaka City, Osaka, 577-8502, Japan
Contact	TEL:+81-6-4307-3473 Inquiry Form

Personnel / Department: Department of Mechanical Engineering, Faculty of Science and Engineering / Professor, Kazuaki Nishiyabu
Address: 3-4-1 Kowakae, Higashiosaka City, Osaka, 577-8502, Japan
Contact: TEL:+81-6-4307-3473
Inquiry Form
