FRTP hybrid (over injection) molding machine equipped with high-speed heating and high speed conveying mechanism

Technical WEB page Company/Organization WEB page Print

SATOH MACHINERY WORKS CO., Ltd

FRTP hybrid (over injection) molding machine equipped with high-speed heating and high speed conveying mechanism

Technical Classification:: [ Molding ]
Products:: [ Equipment / Facilities ]
Keyword:: [ C/GFRTP ] [ heating and transfer equipment ] [ hybrid molding machine ] [ mass production system ] [ trial machine ]

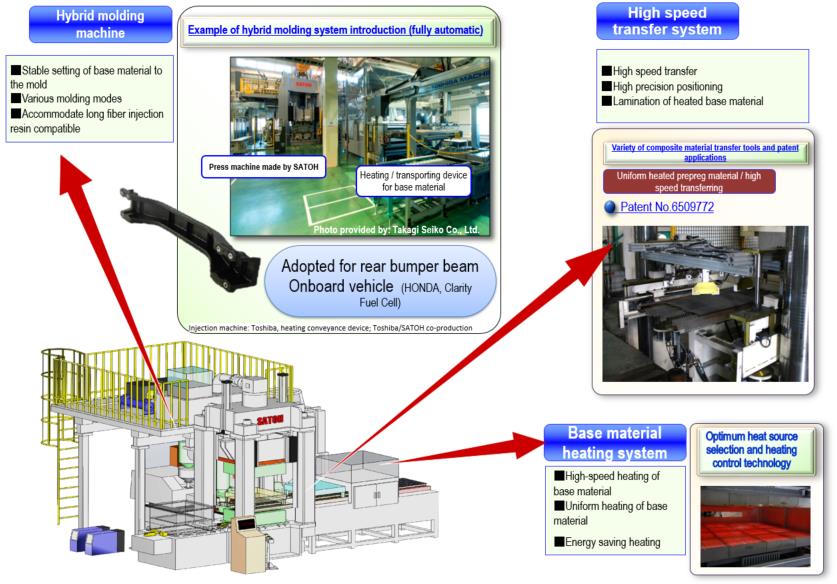

Point of the Proposed Technology

Capable of performing high-speed heating and high-speed transfer of C/GFRTP matrix.
Hybrid-molding (pressing + injection molding) thermoplastic resin impregnated continuous fiber and discontinuous fiber.
Capable of performing diverse molding methods using the same mold by switching between compression molding mode and injection molding mode.

Effect(s)

・High cycle/hybrid molding
・Realization of 60-second molding cycle
・Suitable for both small and large size machines

New Technology

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	Yes
Joint Researchers (their role)	None
Example of Application	Automobiles, building structures, environment, aviation, leisure
Technical Problems	Improvement of heating technology Improvement of motorization technology
Collaborator needed to Improve	Automobile manufacturers Research institutes, Material makers
Technical WEB page	http://www.satoh-gr.co.jp/business/molding_machine/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: Yes
Joint Researchers (their role): None
Example of Application: Automobiles, building structures, environment, aviation, leisure
Technical Problems: Improvement of heating technology
Improvement of motorization technology
Collaborator needed to Improve: Automobile manufacturers
Research institutes, Material makers
Technical WEB page: http://www.satoh-gr.co.jp/business/molding_machine/

Inquiries

Personnel / Department	Otowahagi Plant / Plant manager, Yasuhiro Satoh
Address	1-2 Nakayama, Hagi-cho, Toyokawa, Aichi, 441-0201 Japan
Contact	TEL:+81-533-88-3200 FAX:+81-533-88-6200 Inquiry Form

Personnel / Department: Otowahagi Plant / Plant manager, Yasuhiro Satoh
Address: 1-2 Nakayama, Hagi-cho, Toyokawa, Aichi, 441-0201 Japan
Contact: TEL:+81-533-88-3200
FAX:+81-533-88-6200
Inquiry Form

Outline of Company and Organization

Location	3-42 Kyuubann-Cho, Minato-Ku, Nagoya, Aichi, 455-0008 Japan
Contact	TEL:+81-52-661-0176 FAX:+81-52-661-2809
Capital / No. of Employees	45,000,000 yen / 122 employees
Product Line	Vertical injection molding machine
Major Customers	Automobile makers, Tier 1, and others
Overseas Base(s)	None
Certification	ISO9001(Entire Company) / JIS Q9100(Processing Sector)
Company/Organization WEB page	http://www.satoh-gr.co.jp/

Location: 3-42 Kyuubann-Cho, Minato-Ku, Nagoya, Aichi, 455-0008 Japan
Contact: TEL:+81-52-661-0176
FAX:+81-52-661-2809
Capital / No. of Employees: 45,000,000 yen / 122 employees
Product Line: Vertical injection molding machine
Major Customers: Automobile makers, Tier 1, and others
Overseas Base(s): None
Certification: ISO9001(Entire Company) / JIS Q9100(Processing Sector)
Company/Organization WEB page: http://www.satoh-gr.co.jp/
