Internal mold pressure and monitoring and control of molding process by pressure and/or temperature sensors

Technical WEB page Company/Organization WEB page Print

Kistler Japan Co., Ltd.

Internal mold pressure and monitoring and control of molding process by pressure and/or temperature sensors

Technical Classification:: [ Molding ]
Products:: [ Products / Processed Products ]
Keyword:: [ Control ] [ Internal mold pressure ] [ mold surface temperature ] [ monitoring ]

Point of the Proposed Technology

Inside of a mold was like a black box, and the behavior of resin in the mold was unknown. Molded product must be evaluated after being taken out from a mold. Use of this sensor makes it possible to grasp the behavior of resin in a mold during molding (while a mold is closed). It is expected to be used for analysis of behavior of resin in the mold, optimization of molding conditions, control during production or selection of defectives.

Effect(s)

・Grasping of behavior of resin in mold uring molding
・Optimization of molding conditions
・Molding control, detection of defective

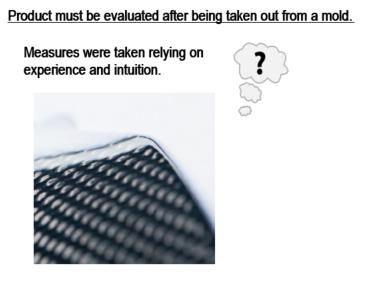

Conventional Technology

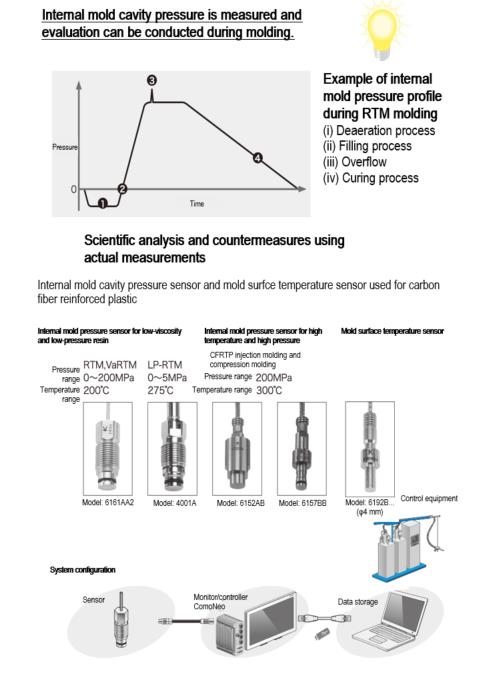

New Technology

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	None
Joint Researchers (their role)
Example of Application	It is expected to contribute to increase in quality and shortening of development time for CFRP processing to automotive and aircraft industries.
Technical Problems	・Installation position of sensor, operating temperature, measuring pressure ・Introduction of case examples and increase in sale of sensor
Collaborator needed to Improve	・Parts makers, mold makers, molding machine makers, resin makers ・CFRP molding research organizations
Technical WEB page	https://www.kistler.com/ja/applications/sensor-technology/test-measurement/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: None
Joint Researchers (their role)
Example of Application: It is expected to contribute to increase in quality and shortening of development time for CFRP processing to automotive and aircraft industries.
Technical Problems: ・Installation position of sensor, operating temperature, measuring pressure
・Introduction of case examples and increase in sale of sensor
Collaborator needed to Improve: ・Parts makers, mold makers, molding machine makers, resin makers
・CFRP molding research organizations
Technical WEB page: https://www.kistler.com/ja/applications/sensor-technology/test-measurement/

Inquiries

Personnel / Department	Industry Division / Manager, Hiroharu Orita
Address	2F, BENEX S-3, 3-20-8 Shinyokohama Kohoku-ku, Yokohama, Kanagawa, 222-0033, Japan
Contact	TEL:+81-45-471-8620 Inquiry Form

Personnel / Department: Industry Division / Manager, Hiroharu Orita
Address: 2F, BENEX S-3, 3-20-8 Shinyokohama Kohoku-ku, Yokohama, Kanagawa, 222-0033, Japan
Contact: TEL:+81-45-471-8620
Inquiry Form

Outline of Company and Organization

Location	2F, BENEX S-3, 3-20-8 Shinyokohama Kohoku-ku, Yokohama, Kanagawa, 222-0033, Japan 222-0033
Contact	TEL:+81-45-471-8620
Capital / No. of Employees	50,000,000 yen / 46 employees
Product Line	Force, pressure and acceleration sensors and their application products
Major Customers	Toyota Motor Corporation, Honda R&D Co., Ltd. etc.
Overseas Base(s)	Swiss (headquarters of the Group), Germany, United States, China, Southeast Asia, etc.
Certification	ISO 9001
Company/Organization WEB page	http://www.kistler.com

Location: 222-0033 2F, BENEX S-3, 3-20-8 Shinyokohama Kohoku-ku, Yokohama, Kanagawa, 222-0033, Japan
Contact: TEL:+81-45-471-8620
Capital / No. of Employees: 50,000,000 yen / 46 employees
Product Line: Force, pressure and acceleration sensors and their application products
Major Customers: Toyota Motor Corporation, Honda R&D Co., Ltd. etc.
Overseas Base(s): Swiss (headquarters of the Group), Germany, United States, China, Southeast Asia, etc.
Certification: ISO 9001
Company/Organization WEB page: http://www.kistler.com
