Tsudakoma Corp.
Carbon fiber composite material lay-up processing line
- Technical Classification:
- [ Intermediate Products ]
- Products:
- [ Equipment / Facilities ]
- Keyword:
- [ Realizing the mass production lay-up process for the prepreg sheet ]
Point of the Proposed Technology
1. Thanks to accurate lay-up quality by the auto lay-up machine, finished parts quality can be improved and stabilized compare with hand-lay-up process.
2. Manpower saving and higher productivity can be achieved by adopting full-automated processing system.
3. As a research equipment, quantitative testing which was not available with hand lay-up method can be achieved.
2. Manpower saving and higher productivity can be achieved by adopting full-automated processing system.
3. As a research equipment, quantitative testing which was not available with hand lay-up method can be achieved.
Effect(s)
More than 80% running cost saving
(compared to the manual processing)
(compared to the manual processing)

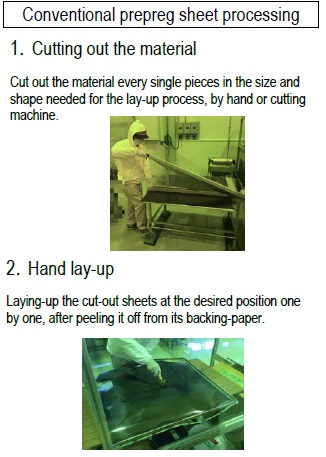

Conventional Technology

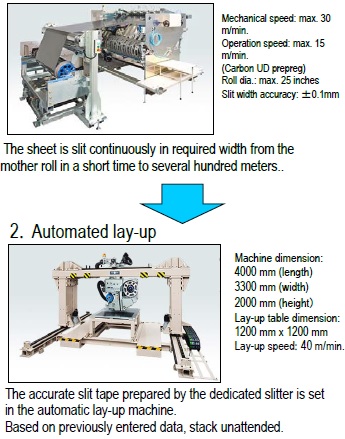

New Technology
Video of the Proposed Technology
Technology Deployment and Cooperation
- Development Stage
-
Commercialization Completed (already delivered: yes)
- Intellectual Property Right
- Yes
- Joint Researchers (their role)
- Example of Application
- ・CF prepreg process of aircraft structural parts and automobile structure materials as well as exterior sheet parts.
・Slit processing for new materials such as highly-functional film
- Technical Problems
- Depending on the lay-up pattern, material waste may be generated, but it can be minimized by an optimization of the tape width. Forfurther material waste saving, we have been addressing machine development.
- Collaborator needed to Improve
- CFRP product manufactures, companies with knowledge in material processing, research institutes such asuniversities, etc.
- Technical WEB page
- http://www.tsudakoma.co.jp/composite/japanese/index.html
