Thermoplastic G/CFRP prepreg

Technical WEB page Company/Organization WEB page Print

Porcher Industries Japan K.K.

Technical Classification:: [ Intermediate Products ]
Products:: [ Products / Processed Products ]
Keyword:: [ cost reduction ] [ lamination technology ] [ moldability ] [ non-outgazing material ] [ recycled or reusable material ] [ substitution for metal ] [ Thermoplastic resin ] [ toughness ] [ weight reduction ]

Point of the Proposed Technology

1/ Excellent impact resistance and toughness against micro-cracking　2/ Good resistance to creep and fatigue　

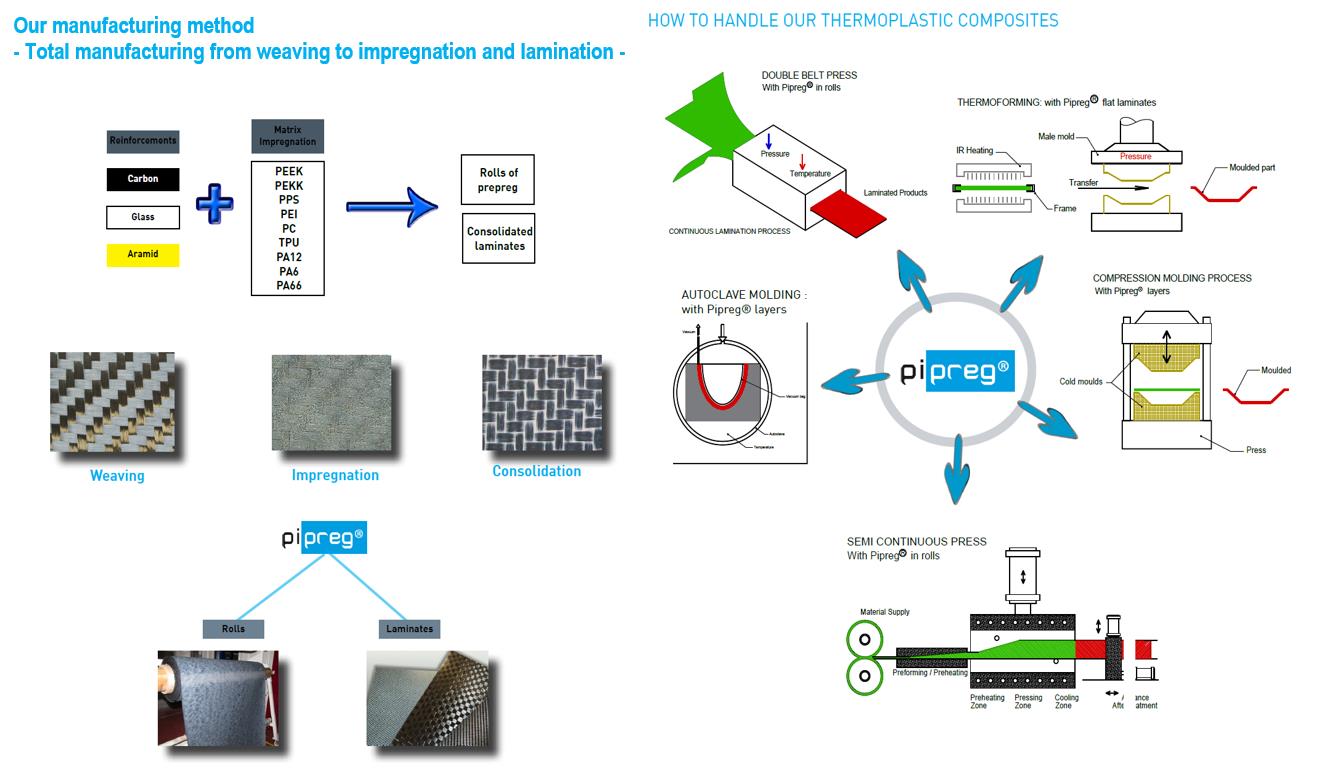

3/ Hybrid processes : over-molding, over-injection, induction welding 　4/ Different forms : braided, woven, mats
5/ Prepreg rolls, organosheets and cut blanks ready to be formed　　 6/ Exhaustive resins portfolio　
7/ High rate processing　　　　　　　　　　　　　　　　　　　　　 8/ No exothermic risk event for thick parts
9/ Non-reactive chemistry, no outgazing　10/ Extensive shelf life at room temperature　11/ Infinite remolding

Effect(s)

・Long-term storage at room temperature
・Easy reprocessing and recyclable
・Resistant to shock
・Shortening of process cycle
・Increase in yield
・ Even surfaces without post-processing

Conventional Technology

Conventionally, glass cloth, carbon fiber cloth or the like was impregnated with thermoset resin, and prepregs after heating were laminated. Also, it was difficult to supply prepreg in the form of roll.

New Technology

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	Yes
Joint Researchers (their role)
Example of Application	Structural parts in aerospace, cost-effective parts in aircraft interiors, Battery casing, bodyworks in automotive
Technical Problems	・Mass production from weaving to prepreg ・Increase of visibility and development in Japanese market
Collaborator needed to Improve	Access to tiers 1 and OEM in aerospace, automotive and wind power generation industry
Technical WEB page	http://www.porcher-ind.com/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: Yes
Joint Researchers (their role)
Example of Application: Structural parts in aerospace, cost-effective parts in aircraft interiors,
Battery casing, bodyworks in automotive
Technical Problems: ・Mass production from weaving to prepreg
・Increase of visibility and development in Japanese market
Collaborator needed to Improve: Access to tiers 1 and OEM in aerospace, automotive and wind power generation industry
Technical WEB page: http://www.porcher-ind.com/

Inquiries

Personnel / Department	Supply Chain & Sales Assistant, Porcher Industries Japan K.K. / Porcher Industries / 　： Keiko Asayama / Pierre-Yves Quéfélec
Address	21F Shin-Marunouchi Center Building, 1-6-2 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, JAPAN
Contact	TEL:+81-3-3216-7529 FAX:+81-3-3216-7210 Inquiry Form

Personnel / Department: Supply Chain & Sales Assistant, Porcher Industries Japan K.K. / Porcher Industries / 　： Keiko Asayama / Pierre-Yves Quéfélec
Address: 21F Shin-Marunouchi Center Building, 1-6-2 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, JAPAN
Contact: TEL:+81-3-3216-7529
FAX:+81-3-3216-7210
Inquiry Form

Outline of Company and Organization

Location	21F Shin-Marunouchi Center Building, 1-6-2 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, JAPAN
Contact	TEL:+81-3-3216-7529 FAX:+81-3-3216-7210
Capital / No. of Employees	0 yen / 2000人
Product Line	Composite of carbon fiber, glass fiber, various synthetic fibers or the like
Major Customers	Not communicated
Overseas Base(s)	France, UK, USA, India, Brazil, China (Shanghai, Hong Kong)
Certification	ISO9001, EN9100
Company/Organization WEB page	http://www.porcher-ind.com/

Location: 21F Shin-Marunouchi Center Building, 1-6-2 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, JAPAN
Contact: TEL:+81-3-3216-7529
FAX:+81-3-3216-7210
Capital / No. of Employees: 0 yen / 2000人
Product Line: Composite of carbon fiber, glass fiber, various synthetic fibers or the like
Major Customers: Not communicated
Overseas Base(s): France, UK, USA, India, Brazil, China (Shanghai, Hong Kong)
Certification: ISO9001, EN9100
Company/Organization WEB page: http://www.porcher-ind.com/
