Development of CFRTP tape lamination machine with its effective laminating method

Technical Classification:: [ Intermediate Products ]
Products:
Keyword:: [ Automatic tape lamination(ATL) ] [ Sewing machine stitching ] [ tape ]

Point of the Proposed Technology

In terms of parts molding with carbon fiber reinforced thermoplastic (CFRTP) composite, we developed the automatic CFRTP tape lamination machine which can increase a material yield and reduce a lamination time substantially.

Effect(s)

・Increase in yield of material
・Substantial reduction of lamination time　　　　　　　　　　　　　　　　　　　　　
・Placing tapes with desirable fiber direction and length to an appropriate position
・Increase in interlaminar strength by stitching

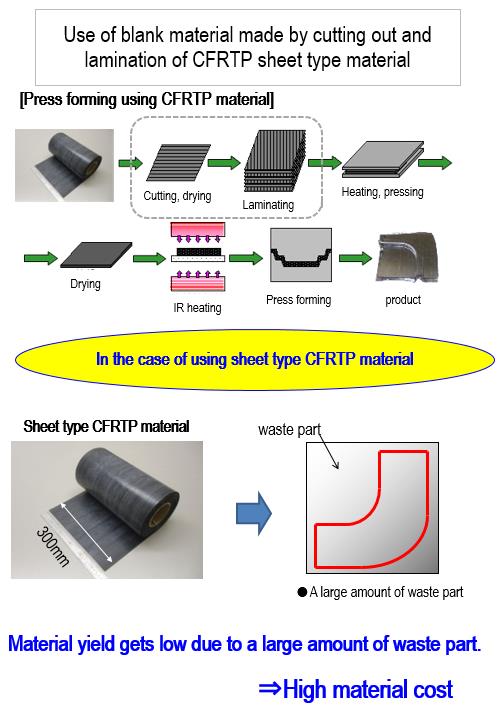

Conventional Technology

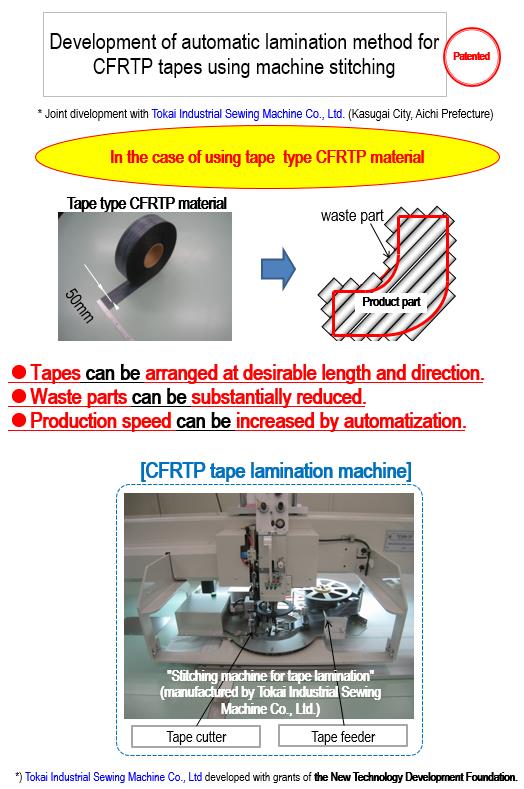

New Technology

Technology Deployment and Cooperation

Development Stage	Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right	Yes
Joint Researchers (their role)	Working in concert with: TISM Co., LTD(former:Tokai Industrial Sewing Machine Co., Ltd, Kasugai City, Aichi Prefecture)： Industrial sewing machine stitching technology
Example of Application	・Various parts for automobiles, various parts for industrial machines, commodities, etc.
Technical Problems	By choosing the stitch yarn and the base material (fabric or film), it can be applied to both the same material as CFRTP resin and the material different from CFRTP resin. By using multi-head machine, plural laminations can be made simultaneously.. Tokai Industrial Sewing Machine Co., Ltd. provides not only lamination machines but control software.
Collaborator needed to Improve	・ Research organizations, and companies related to Material, Mold, Parts forming etc.
Technical WEB page	https://www.pref.hiroshima.lg.jp/soshiki/27/tanso-pj.html

Development Stage: Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right: Yes
Joint Researchers (their role): Working in concert with:
TISM Co., LTD(former:Tokai Industrial Sewing Machine Co., Ltd, Kasugai City, Aichi Prefecture)： Industrial sewing machine stitching technology
Example of Application: ・Various parts for automobiles, various parts for industrial machines, commodities, etc.
Technical Problems: By choosing the stitch yarn and the base material (fabric or film), it can be applied to both the same material as CFRTP resin and the material different from CFRTP resin.
By using multi-head machine, plural laminations can be made simultaneously..
Tokai Industrial Sewing Machine Co., Ltd. provides not only lamination machines but control software.
Collaborator needed to Improve: ・ Research organizations, and companies related to Material, Mold, Parts forming etc.
Technical WEB page: https://www.pref.hiroshima.lg.jp/soshiki/27/tanso-pj.html
