New thermoplastic carbon fiber TOW UD

Technical WEB page Company/Organization WEB page Print

KOMATSU MATERE Co., Ltd.

Technical Classification:: [ Intermediate Products ]
Products:: [ Products / Processed Products ]
Keyword:: [ Carbon fiber composite material ] [ High Vf value ] [ Reactive thermoplastic epoxy resin ]

Point of the Proposed Technology

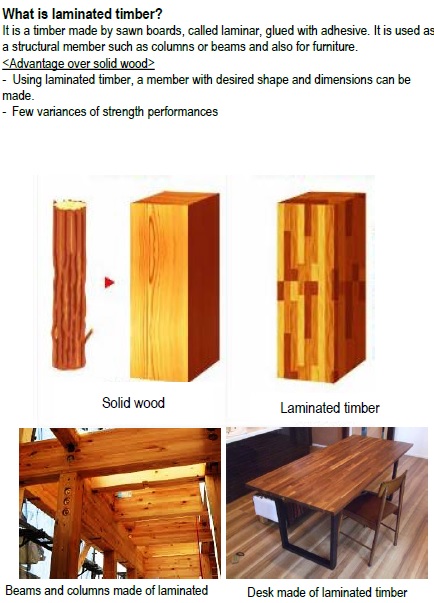

Unidirectional carbon fiber sheet using thermoplastic resin. By integrating this carbon fiber with laminated timber, a new laminated timber,which is thinner, lighter, and stronger than an ordinary laminated timber was developed. Domestically produced Japanese cedar timberespecially is low in strength, and its use as structural material is limited. By combining cedar timber with carbon fiber, the strength is increasedand it is expected that the usage amount of domestic timbers as structural materials is increased, resulting in a contribution to promotion of theforestry industry.

Effect(s)

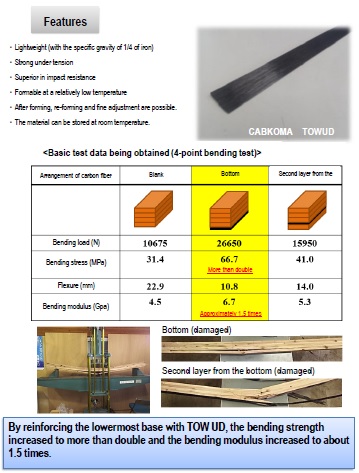

Improvement of workability, weightreduction of whole construction, noheavy equipment is required, resultingin cost reduction and long life cycle

Conventional Technology

New Technology

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: no)
Intellectual Property Right	Yes
Joint Researchers (their role)	Daiwa House Industry Co., Ltd.: Technology development, implementation of test, intellectual property survey Daiwa Lease Co., Ltd.: Market research, design, study of materials Chuto Co., Ltd.: Study of materials KOMATSU MATERE Co.,Ltd.: Study of materials
Example of Application	CFRTP-reinforced laminated timber, etc.
Technical Problems	Since it is not included in the designated materials under Article 37, Section 2 of the Building Standards Law, it cannot be applied to newl building constructions. It can be applied only to modification of existing buildings and aseismatic reinforcement. In civil engineering, it can be used when its use complies with the civilengineering guideline.
Collaborator needed to Improve	KOMATSU MATERE Co.,Ltd.
Technical WEB page	http://www.komatsumatere.co.jp/

Development Stage: Commercialization Completed (already delivered: no)
Intellectual Property Right: Yes
Joint Researchers (their role): Daiwa House Industry Co., Ltd.: Technology development, implementation of test, intellectual property survey
Daiwa Lease Co., Ltd.: Market research, design, study of materials
Chuto Co., Ltd.: Study of materials
KOMATSU MATERE Co.,Ltd.: Study of materials
Example of Application: CFRTP-reinforced laminated timber, etc.
Technical Problems: Since it is not included in the designated materials under Article 37, Section 2 of the Building Standards Law, it cannot be applied to newl building constructions.
It can be applied only to modification of existing buildings and aseismatic reinforcement. In civil engineering, it can be used when its use complies with the civilengineering guideline.
Collaborator needed to Improve: KOMATSU MATERE Co.,Ltd.
Technical WEB page: http://www.komatsumatere.co.jp/
