Development of foaming epoxy resin

Technical WEB page Company/Organization WEB page Print

SANYU REC CO., LTD.

Technical Classification:: [ Raw Materials ]
Products:: [ Products / Processed Products ]
Keyword:: [ foaming ] [ thermosetting ] [ weight reduction ]

Point of the Proposed Technology

The weight of composite material can be reduced, as a matter of course, and during molding of prepreg such as CF and GF, the epoxy foam resin can also be foamed and cured, so that a molded body can be produced in one process, resulting in reduction of processes.

Effect(s)

70% weight reduction

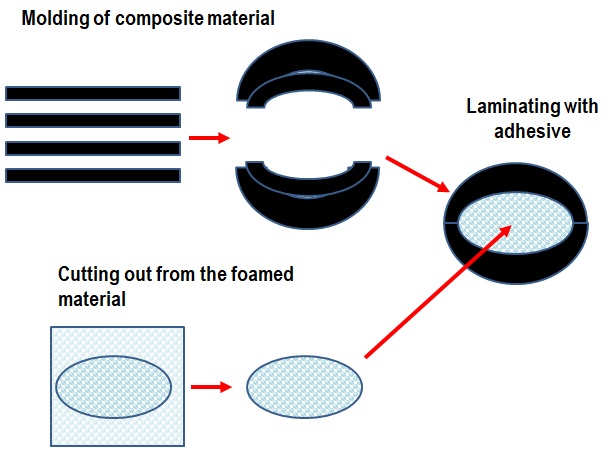

Conventional Technology

Example of manufacturing of foam using composite material

・Three processes are needed.
・ Large loss of foamed material.

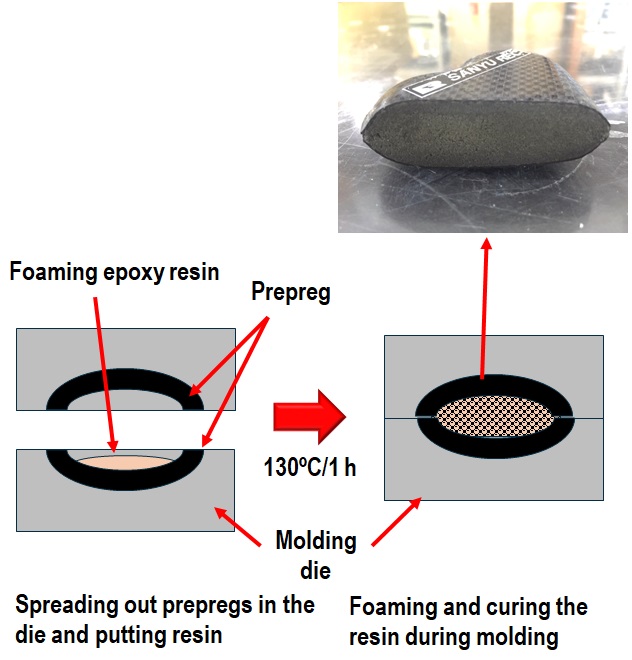

New Technology

・Manufacturing in one process.
・High-strength foam can be obtained through integral molding together with prepreg.

Technology Deployment and Cooperation

Development Stage	Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right	Yes
Joint Researchers (their role)	Company's own technology
Example of Application	Weight reduction/reinforcement of automobile parts, weight reduction/reinforcement of sports goods, etc.
Technical Problems	・Adjustment of timing of foaming/curing according to the molding condition. ・Curing temperature of 130°C or higher is required.
Collaborator needed to Improve	Molding manufacturers, coating processing manufacturers, etc.
Technical WEB page	https://www.sanyu-rec.jp/business/composite.html

Development Stage: Development Stage (to be completed in 0/0; progress: 0%)
Intellectual Property Right: Yes
Joint Researchers (their role): Company's own technology
Example of Application: Weight reduction/reinforcement of automobile parts, weight reduction/reinforcement of sports goods, etc.
Technical Problems: ・Adjustment of timing of foaming/curing according to the molding condition.
・Curing temperature of 130°C or higher is required.
Collaborator needed to Improve: Molding manufacturers, coating processing manufacturers, etc.
Technical WEB page: https://www.sanyu-rec.jp/business/composite.html
