Electro-fusion joining technology for CFRP

Technical WEB page Company/Organization WEB page Print

Kindai University, Department of Mechanical Engineering, Faculty of Science and Engineering

Technical Classification:: [ Joining ]
Products:
Keyword:: [ corrosion resistance ] [ Fusion joining ] [ recyclability ] [ spread carbon fiber ] [ tensile shearing strength ]

Point of the Proposed Technology

・Compared to the conventional fusion joining using a metallic resistance heating element, this technology substantially increases the tensile shearing strength of fusion joined portion.
・By using carbon fiber for the resistance heating element, the joining strength, recyclability and corrosion resistance are increased.

Effect(s)

・Realizing a tensile shearing strength of 30 MPa or more
・Improving the corrosion resistance and recyclability

Conventional Technology

・Mechanical joining
　　The increase in weight due to stress concentration and metallic fastening is a problem.

・Adhesion joining
　　Chemical bonding with thermoplastic resin is extremely low.

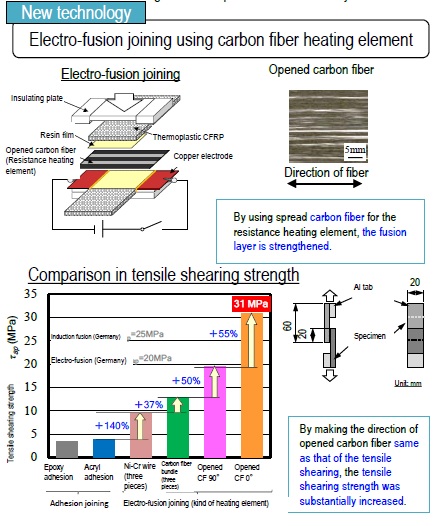

New Technology

Technology Deployment and Cooperation

Development Stage	Prototyping / experimental Stage (to be completed in 2018/3; progress: 80%)
Intellectual Property Right	Yes
Joint Researchers (their role)	Graduate Schools of Osaka University (Assessment of mechanical properties of fused portion, and so on)

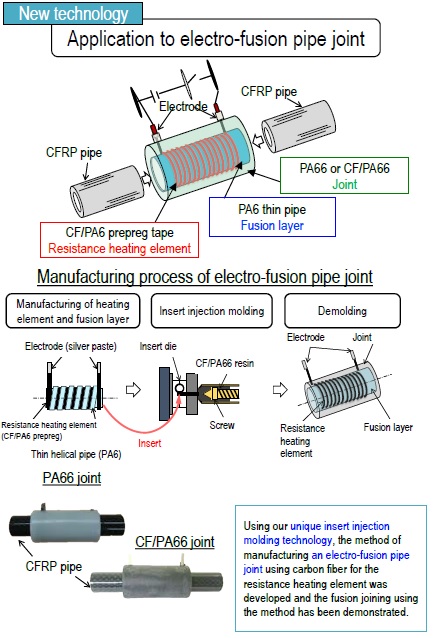

Example of Application	・Fusion joining using thermoplastic CFRP and GFRP and various resin members and pipe joints ・Joining or repair of members by high-cycle fusion joining of thermosetting CFRP and GFRP
Technical Problems	・Upsizing and stabilization of fusion joining, increase of reliability in fatigue strength, impact resistance, etc. ・The patent application for this technology has been filed. The technology can be provided.
Collaborator needed to Improve	・Companies having the techniques for homogeneous spreading of carbon fiber and impregnation molding of various thermoplastics. ・Device manufacturers which can develop stable and high-output power sources
Technical WEB page	http://www.kindai.ac.jp/sci/

Development Stage: Prototyping / experimental Stage (to be completed in 2018/3; progress: 80%)
Intellectual Property Right: Yes
Joint Researchers (their role): Graduate Schools of Osaka University
(Assessment of mechanical properties of fused portion, and so on)
Example of Application: ・Fusion joining using thermoplastic CFRP and GFRP and various resin members and pipe joints
・Joining or repair of members by high-cycle fusion joining of thermosetting CFRP and GFRP
Technical Problems: ・Upsizing and stabilization of fusion joining, increase of reliability in fatigue strength, impact resistance, etc.
・The patent application for this technology has been filed. The technology can be provided.
Collaborator needed to Improve: ・Companies having the techniques for homogeneous spreading of carbon fiber and impregnation molding of various thermoplastics.
・Device manufacturers which can develop stable and high-output power sources
Technical WEB page: http://www.kindai.ac.jp/sci/

Inquiries

Personnel / Department	Department of Mechanical Engineering, Faculty of Science and Engineering / Professor, Kazuaki Nishiyabu
Address	3-4-1 Kowakae, Higashiosaka-shi, Osaka, 577-8502 Japan
Contact	TEL:+81-6-4307-3473 Inquiry Form

Personnel / Department: Department of Mechanical Engineering, Faculty of Science and Engineering / Professor, Kazuaki Nishiyabu
Address: 3-4-1 Kowakae, Higashiosaka-shi, Osaka, 577-8502 Japan
Contact: TEL:+81-6-4307-3473
Inquiry Form
