Improvement of fatigue life of CFRP by addition of cellulose nanofiber

Technical Classification:: [ Raw Materials ] [ Product Design ]
Products:: [ Equipment / Facilities ]
Keyword:: [ Cellulose nanofiber ] [ improvement of fatigue endurance ]

Point of the Proposed Technology

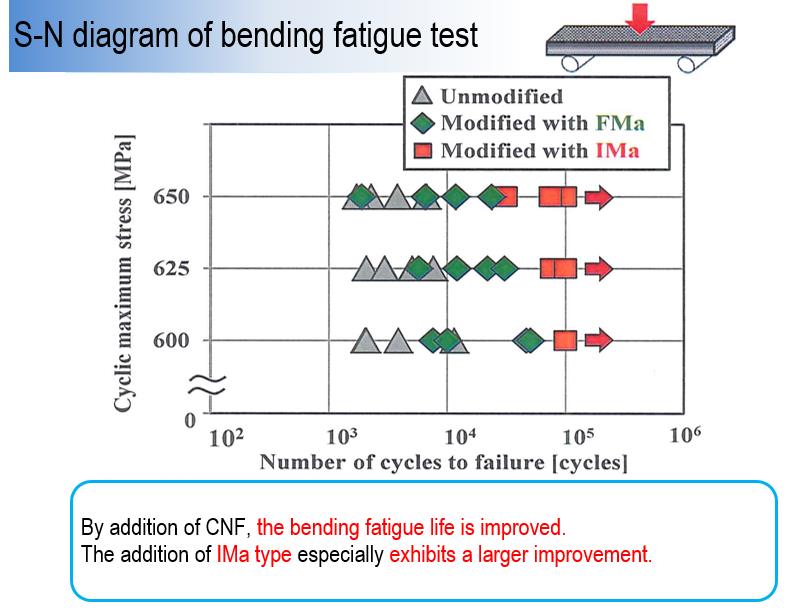

By addition of the cellulose nanofiber manufactured by our company to CFRP, the bending and tension fatigue life of the CFRP is substantially increased.

Effect(s)

Over 10-times increase by addition of 0.3 wt% of the cellulose nanofiber

New Technology

・Cellulose nanofiber FMa: short fiber, IMa: long fiber
・Resin: Thermosetting epoxy resin

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	Applying
Joint Researchers (their role)	Kazuya Okubo, Professor, Department of Energy and Mechanical Engineering, Faculty of Science and Engineering, Doshisha University (Role: Development, analysis, evaluation)
Example of Application	Primary structural members for aircrafts, automobiles, etc.
Technical Problems	Technical issues: Mass production technology, application to thermoplastic resin The supply of cellulose nanofiber → as for the manufacture of the cellulose nanofiber-added CFRP, the partners
Collaborator needed to Improve	CFRP manufacturing companies Manufacturing companies of carbon fiber and resin for CFRP
Technical WEB page	http://www.sugino.com/site/biomass-nanofiber/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: Applying
Joint Researchers (their role): Kazuya Okubo, Professor, Department of Energy and Mechanical Engineering, Faculty of Science and Engineering, Doshisha University (Role: Development, analysis, evaluation)
Example of Application: Primary structural members for aircrafts, automobiles, etc.
Technical Problems: Technical issues: Mass production technology, application to thermoplastic resin
The supply of cellulose nanofiber → as for the manufacture of the cellulose nanofiber-added CFRP, the partners
Collaborator needed to Improve: CFRP manufacturing companies
Manufacturing companies of carbon fiber and resin for CFRP
Technical WEB page: http://www.sugino.com/site/biomass-nanofiber/
