Development of "Biomass nano-fiber" composites using water jet technology

Technical Classification:: [ Raw Materials ] [ Product Design ]
Products:: [ Equipment / Facilities ]

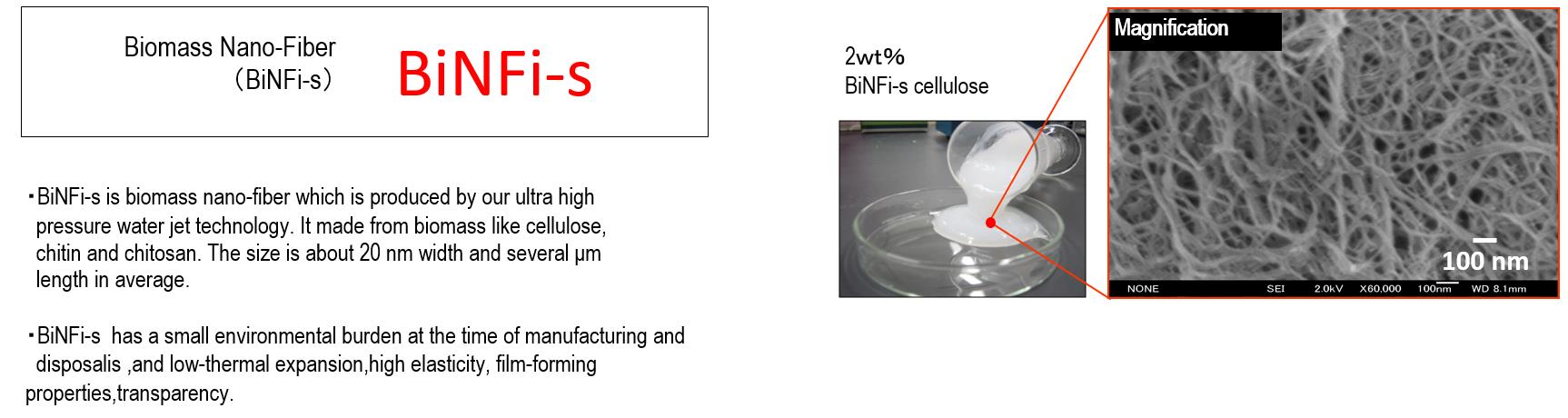

Keyword:: [ BiNFi-s ] [ Biomass ] [ Filler ] [ Mixing ] [ Nano cellulose ] [ Nano-fiber ] [ Water jet ]

Point of the Proposed Technology

・It is possible to develop the composite materials of light weight and low load for environment by mixing Biomass Nano-fiber instead of onventional carbon and glass fiber.

Effect(s)

・Environmental load:dependence on the mixed quantity

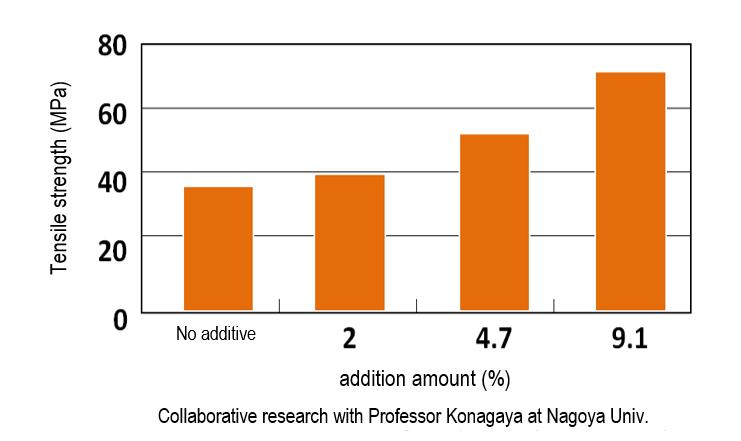

・Tensile strength：mixed into PVA, increase more than twofold.

Conventional Technology

Example of application

・It is difficult to recycle and dispose CFRP and GFRP, so that environment burden is high, and replacement of the carbon and glass fiber are required .

New Technology

・It enables to mix with generic hydrophilic resin and it can maintain smoothness.　
　
・The tensile strength can be improved without losing transparency by adding to PVA (polyvinyl alcohol).

Technology Deployment and Cooperation

Development Stage	Commercialization Completed (already delivered: yes)
Intellectual Property Right	Yes
Joint Researchers (their role)
Example of Application	・ Reinforcing materials (water-soluble resin, natural rubber, paper, etc.) ・ Dispersion stabilizers (paints, abrasives, coatings, etc.) ・ Emulsion stabilizers (adhesives, cosmetics, foods, etc.) ・ Water retention agent (cosmetics, food, soil modification, etc.) ・ Deodorant and antibacterial agent (toiletries, clothing, building materials, etc.) ・ CNF 100% molded body (metal, resin, ceramic substitute, etc.)
Technical Problems	・It is difficult to mix with hydrophobic resin. ・Please consider applying our "BiNFi-s" to various materials.
Collaborator needed to Improve	・Companies with polymer mixing technology. ・Companies with technology for cellulose chemical modification. ・Companies with introducing our technology into various materials.
Technical WEB page	http://www.sugino.com/site/biomass-nanofiber/

Development Stage: Commercialization Completed (already delivered: yes)
Intellectual Property Right: Yes
Joint Researchers (their role)
Example of Application: ・ Reinforcing materials (water-soluble resin, natural rubber, paper, etc.)
・ Dispersion stabilizers (paints, abrasives, coatings, etc.)
・ Emulsion stabilizers (adhesives, cosmetics, foods, etc.)
・ Water retention agent (cosmetics, food, soil modification, etc.)
・ Deodorant and antibacterial agent (toiletries, clothing, building materials, etc.)
・ CNF 100% molded body (metal, resin, ceramic substitute, etc.)
Technical Problems: ・It is difficult to mix with hydrophobic resin.
・Please consider applying our "BiNFi-s" to various materials.
Collaborator needed to Improve: ・Companies with polymer mixing technology.
・Companies with technology for cellulose chemical modification.
・Companies with introducing our technology into various materials.
Technical WEB page: http://www.sugino.com/site/biomass-nanofiber/

Inquiries

Personnel / Department	Project Section1, New Development Department, Corporate Planning Division / Chief, Kota Ogura
Address	2410, Hongo, Uozu-shi, Toyama, 937-8511, Japan
Contact	TEL:+81-765-24-5118 Inquiry Form

Personnel / Department: Project Section1, New Development Department, Corporate Planning Division / Chief, Kota Ogura
Address: 2410, Hongo, Uozu-shi, Toyama, 937-8511, Japan
Contact: TEL:+81-765-24-5118
Inquiry Form

Outline of Company and Organization

Location	2410 Hongo, Uozu-shi, Toyama, 937-8511 Japan
Contact	TEL:+81-765-24-5111 FAX:+81-765-24-5051
Capital / No. of Employees	2,324,670,000 yen / 1630 employees（Whole group）
Product Line	Ultra-high pressure water cutting device, wet/dry atomizing unit, drilling unit, etc.
Major Customers
Overseas Base(s)	USA, Mexico, France, Germany, China, Thailand, Singapore, Indonesia, etc.
Certification
Company/Organization WEB page	http://www.sugino.com/index-e.html

Location: 2410 Hongo, Uozu-shi, Toyama, 937-8511 Japan
Contact: TEL:+81-765-24-5111
FAX:+81-765-24-5051
Capital / No. of Employees: 2,324,670,000 yen / 1630 employees（Whole group）
Product Line: Ultra-high pressure water cutting device, wet/dry atomizing unit, drilling unit, etc.
Major Customers
Overseas Base(s): USA, Mexico, France, Germany, China, Thailand, Singapore, Indonesia, etc.
Certification
Company/Organization WEB page: http://www.sugino.com/index-e.html
